KD-2190 Intelligent Cable Comprehensive Detector
KD-2190 Intelligent Cable Comprehensive Detector

KD-2190 Intelligent Cable Comprehensive Detector

Applications:

It is used for non-excavation detection of underground metal pipelines and cables, including route survey, depth measurement, cable identification and ground fault location. It is widely applied in pipeline management, municipal planning, power supply and other sectors for pipeline census and maintenance.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

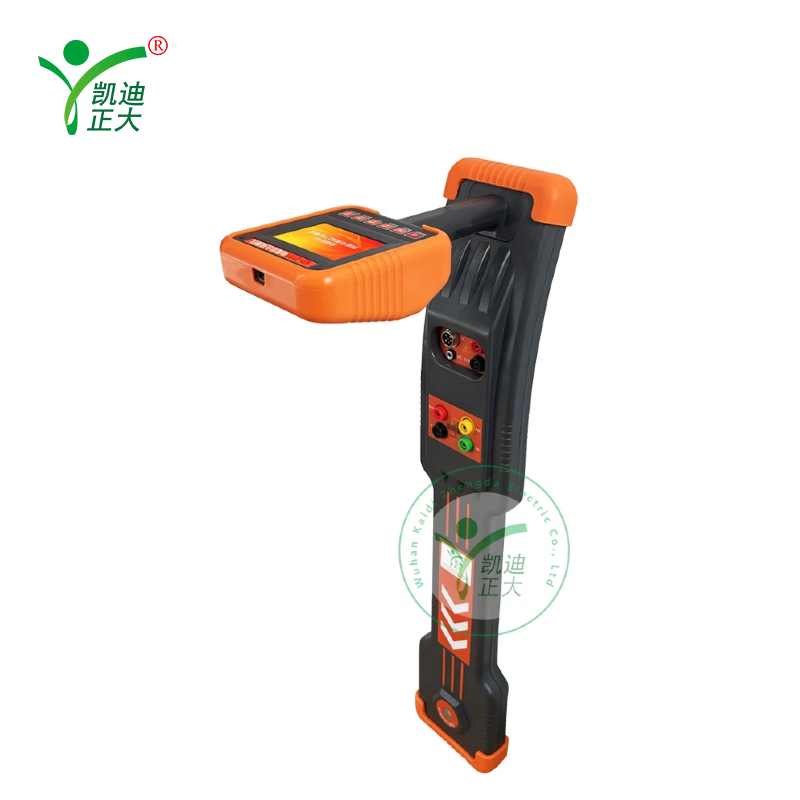

A high-performance integrated pipeline detector with multiple functions like GPS mapping and cloud service (optional). Composed of a transmitter, receiver and optional accessories, it features strong anti-interference, high positioning accuracy and diverse detection modes for field pipeline testing.

Features:

  1. Three detection modes: classic positioning, wire cruise and signal curve mode for flexible pipeline testing.
  2. Classic positioning mode with compass, direction and signal amplitude display for intuitive pipeline location indication.
  3. 360° wire cruise mode with real-time display of depth, current and pipeline relative position, easy to operate for non-professionals.
  4. Signal curve mode with historical signal strength curve display for easy cable location by tracking signal changes.
  5. Optional GPS mapping function to view pipeline geographic coordinates and burial direction via mobile APP.
  6. Current direction judgment (specific frequencies) to eliminate adjacent cable interference and avoid tracking errors.
  7. Built-in frequency sweep test to select optimal frequency and avoid co-frequency interference.
  8. Digital high-precision sampling with narrow receiving bandwidth and strong anti-interference against power frequency and harmonic interference.
  9. Optional ground fault location with A-frame and arrow indication for accurate insulation fault positioning of buried cables.
  10. 12 active and 4 passive detection frequencies to adapt to diverse on-site testing environments.
  11. Transmitter with three output modes: direct connection, clamp coupling and induction for flexible signal transmission.
  12. Transmitter with digital power amplification, automatic impedance matching and overcurrent/short-circuit protection.
  13. Built-in high-brightness lighting for convenient night-time operation of the receiver.
  14. Optional cloud service for data interaction, task management, report generation and data import/export (Android/HarmonyOS compatible).
  15. Efficient cable identification for live/de-energized cables, supporting 10 cables calibration with automatic √/× result display.
  16. Non-contact measurement with flexible current clamp and stethoscope (optional) for cable identification in special conditions.
  17. Step voltage method for ground fault location, stable and accurate with anti-interference to outdoor environmental noise.
  18. Transmitter with integrated toolbox design, pressure-resistant casing and real-time dynamic LCD display of working status.

Parameter:

  1. Pipeline detection (cable position tracking, direction display, depth measurement, current measurement), cable identification, pipeline grounding fault finding, pipeline mapping, cloud services, Bluetooth communication
  2. Power supply: 7.4V DC 3400mAh rechargeable lithium battery
  3. Input mode: built-in receiving coil, flexible caliper, stethoscope
  4. Bluetooth communication: Support Bluetooth communication for instrument control, and connect to mobile APP for various data processing
  5. Receiving frequency: Active detection frequency: 577Hz, 640Hz, 1280Hz, 2.56kHz, 3.20kHz, 4.09kHz, 8.19kHz, 10kHz, 33kHz, 66kHz, 82kHz, 201kHz
  6. Power frequency passive detection frequency: 50Hz, 250Hz
  7. Rf passive detection frequency band: the center frequency is divided into 33kHz and 82kHz
  8. Pipeline detection mode: wide peak method, narrow peak method, sound valley method
  9. Pipeline detection display: classic positioning mode, wire cruise mode, signal curve mode
