1. The launch host uses lithium battery power supply, no need for on-site 220V power supply access, easy to use, and small design, low power consumption, long power supply time, multi-level power indicator.
2. The receiving host adopts color LCD LCD display, accurate power prompt, synchronous display signal direction, amplitude, and interval as an effective judgment basis, and retains multiple signals on the timeline, and determines the cable to be identified more accurately through continuous effective signals.
3. The flexible measuring coil is used for cable identification, which solves the problem that the traditional receiving caliper cannot be stuck into the cable to be identified due to cable congestion and overpressure in the power field.
4. Equipped with a launching caliper, through the caliper coupling to achieve the function of live identification, so that a multi-purpose machine.
5.ABS high-strength protection box, effective protection instrument, while convenient transportation and adapt to the harsh environment of the site.

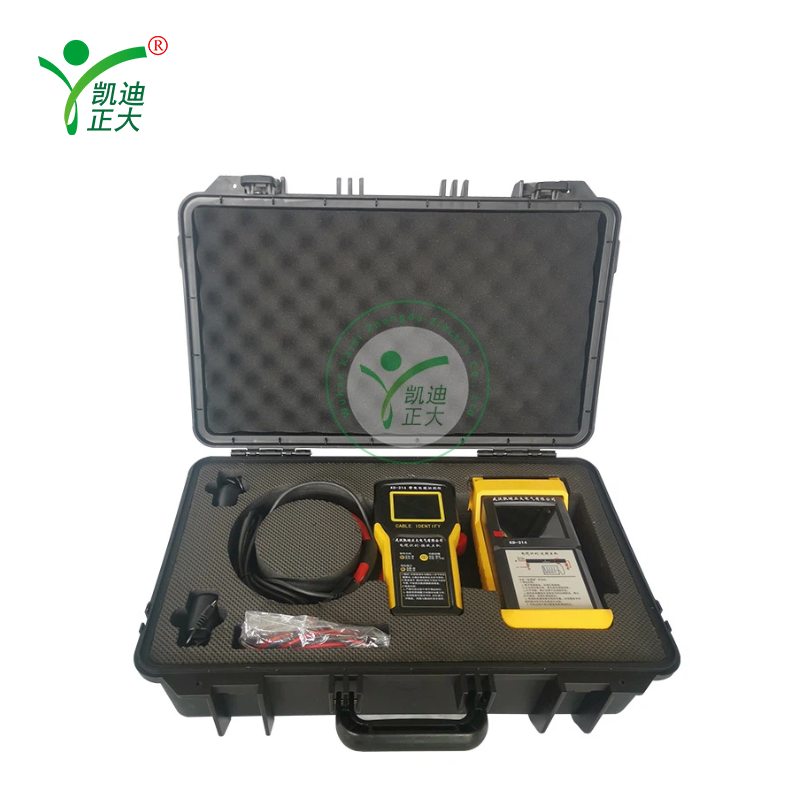

The recognition instrument mainly consists of a transmitting host, a receiving host, a transmitting connection, a transmitting caliper and a flexible measuring coil.
Compared with the previous generation of products, the design of the detector is more compact and convenient to carry;

Transmitting host
Charging voltage :DC5V
Power consumption :≤3W
Working hours :>12h
Signal interval :~2 seconds
Inside diameter of firing caliper :125mm
Ambient temperature :-35℃ ~+55℃
Ambient humidity :≤95%RH

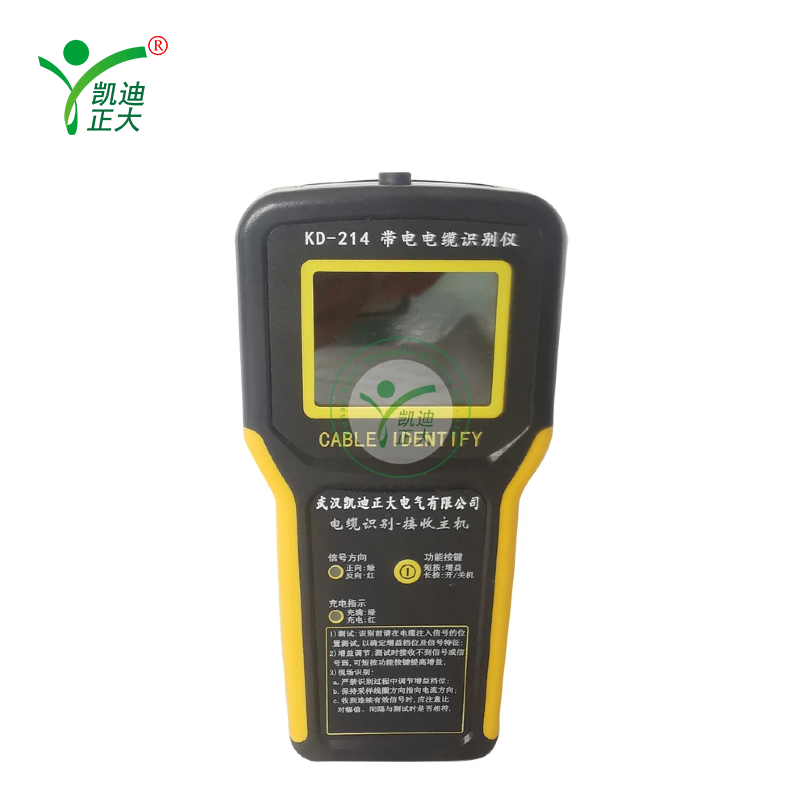

Receiving host
Charging voltage :DC5V
Power consumption :≤1W
Recognition method: direction, amplitude, interval, triple judgment basis
Circuit resistance range: power outage -- grounding circuit resistance ≤500Ω; Live - grounding circuit resistance ≤200Ω
Working hours :>12h
Ambient temperature :-35℃~+55℃
Ambient humidity :≤95%RH
