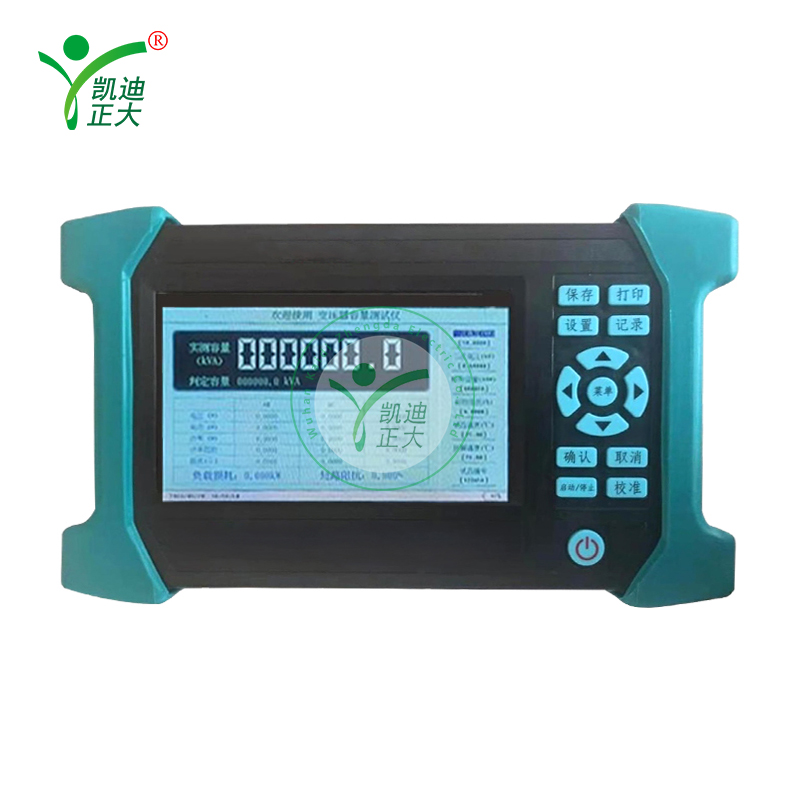

Profile:
This product adopts a color large screen LCD display with English language display, simple and fast menu style operation, and friendly human-machine interface. The instrument comes with a high-performance rechargeable battery inside, which can work without an external power source. A fully charged battery can continuously measure around 500 sets of transformers.
This instrument is a source transformer capacity tester that can accurately measure parameters. It can accurately measure a series of power frequency parameters such as capacity, type, load loss, impedance voltage, etc. of various transformers. The accuracy of capacity test results is 100%, and the capacity measurement range is 10kVA~100000kVA.
This product has many advantages such as small size, light weight, high measurement accuracy, good stability, and simple operation. It can replace the traditional method of measuring transformer losses and capacities using multiple meters, with simpler wiring, easier testing and recording, and improved work efficiency.
Features:

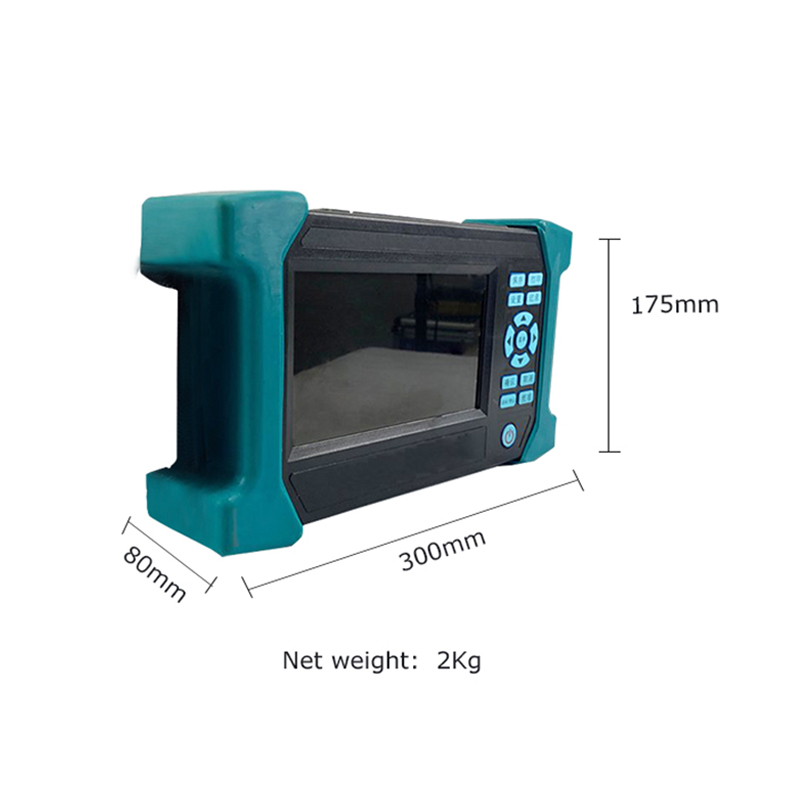

This tester is a portable device with a small size and light weight.
It has the characteristics of easy operation, high accuracy, anti-interference, shock resistance, and easy portability.
Adopting a large capacity lithium battery, it can be continuously used for more than 6 hours on a single charge, and the battery can be replaced at any time, providing guarantee for users' continuous testing.
It has a complete back electromotive force protection function.
Fast measurement speed and accurate and stable measurement data.
The testing process is controlled by a microcomputer, which automatically completes self calibration, stable current judgment, data processing, and numerical display.

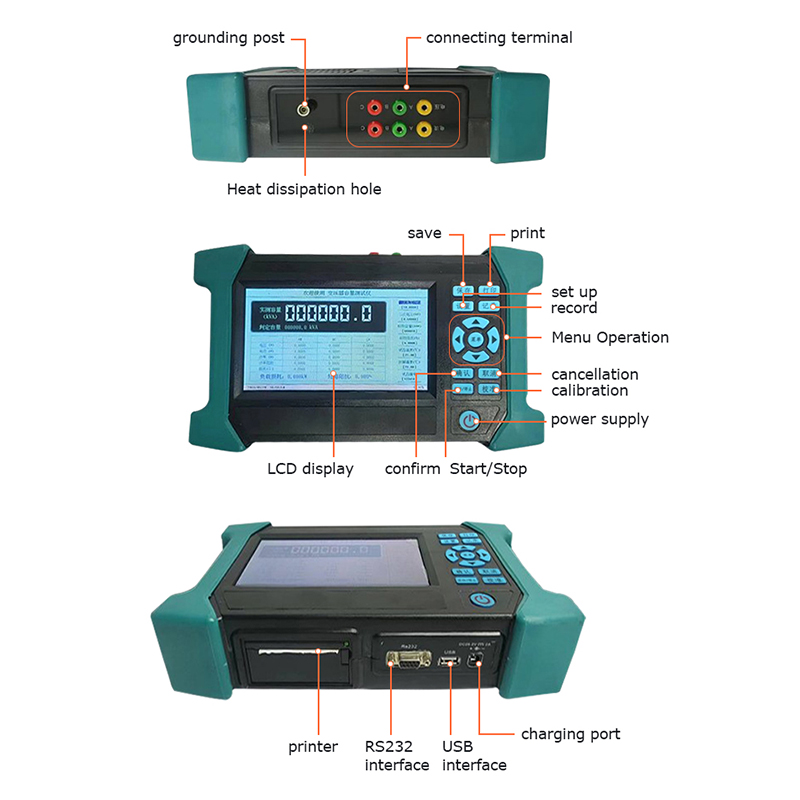

Fully transparent 7-inch large screen LCD, which can display clearly in sunlight.
Built in embedded thermal printer, convenient for users to print on site.

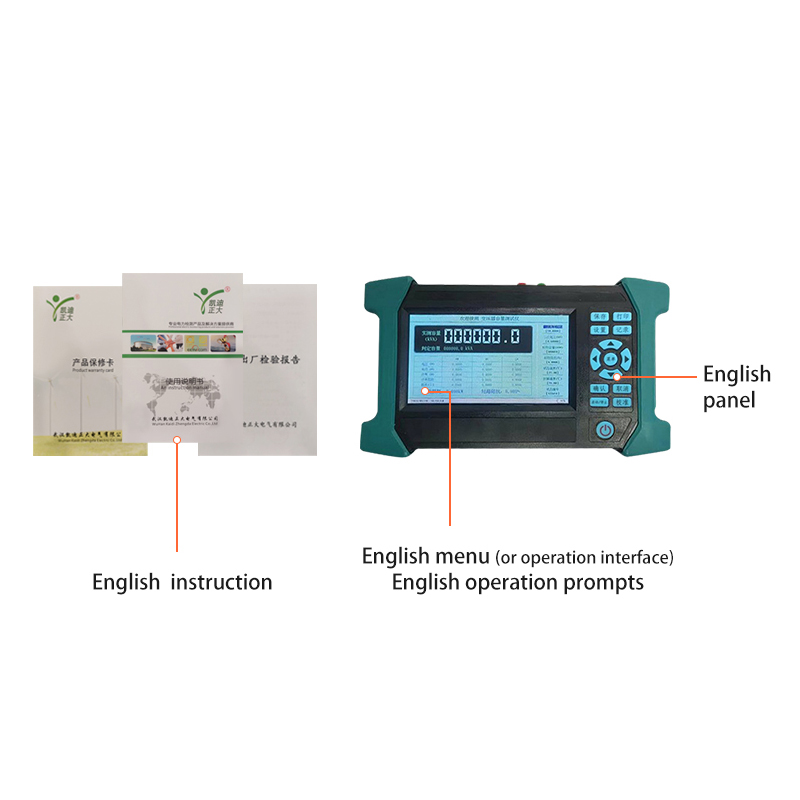

The instrument software is fully functional, with built-in instructions for use, button instructions, wiring diagrams, precautions, and various other introductions, making it convenient for users to refer to during on-site testing.
Non power down clock and date display, with local storage and USB storage functions, can store more data, with R232 and USB interfaces for easy integration with counter data.
The instrument uses silicone buttons to enhance the tactile sensation of pressing during use, making button operations more sensitive; Silicone material enhances the lifespan of the buttons.
It can measure the capacity, impedance voltage, and load loss of various distribution transformers and electrical transformers on site, without the need for additional power supply, making detection more convenient and efficient.
All test results have been automatically calibrated. You only need to input relevant parameters (such as temperature, nominal impedance coefficient, etc.), and the instrument will automatically calibrate, making the test results more accurate.
