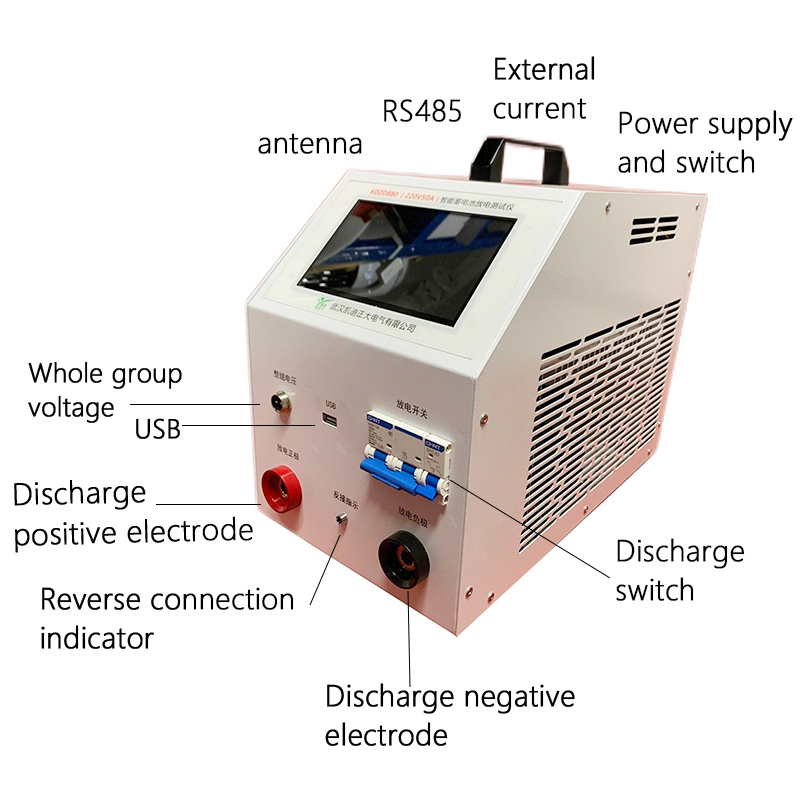

KDZD832 battery activator adopts 10-bit high-speed A/D, D/A, which makes the measurement and control more rapid and accurate, and better meet the needs of real-time measurement and control during charge and discharge. The working principle is to operate the single chip computer through the operating keyboard, and display the operation menu and test control results through the liquid crystal display. Using 128K NVRAM as a memory, data can be stored efficiently. Users can save a set of curve data for separate charging, separate discharge and battery activation, which greatly improves the user's efficiency. With USB communication interface, users can communicate with the computer through the U disk. The data is transmitted to the PC, the battery quality can be monitored for a long time, and various problems affecting the battery quality can be found through the analysis of the battery working status data.

The activator can record the trend of battery voltage and current change and related data in the process of charging, discharging and activation, and has the corresponding curve indication function.
There are three independent modes of use: battery discharge, battery charging and battery activation
The relevant data and trend curve can be displayed after each work execution, including: test battery number, battery internal resistance, total execution time, reason for stopping the test, voltage curve, current curve, etc.
Data viewing (playback) : In the process of charging (discharging) or activation, after the test is interrupted for some reasons, you can choose whether to view the data. When viewing data, press left and right keys to toggle to see relevant data and curve trends.
 Data management: This function allows users to manage the measured and controlled data of the battery, including data upload and curve playback.
System upgrade: This function allows users to update the software of the device online.
