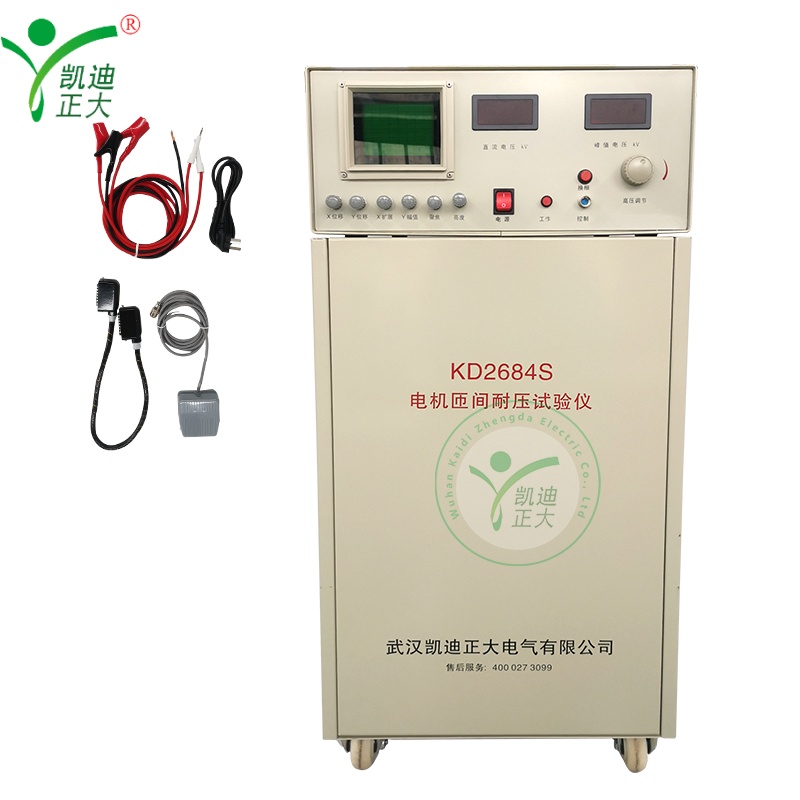

KD2684 Motor Inter-Turn Impulse Withstand Voltage Tester
KD2684 Motor Inter-Turn Impulse Withstand Voltage Tester

KD2684 Motor Inter-Turn Impulse Withstand Voltage Tester

Applications:

Applied to single/three-phase motors, micro motors, special motors, power tools, transformers, relays and winding-equipped appliances. Used in motor manufacturing, electrical equipment production and quality inspection, complying with GB755, GB14711 and GB/T22714 standards.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

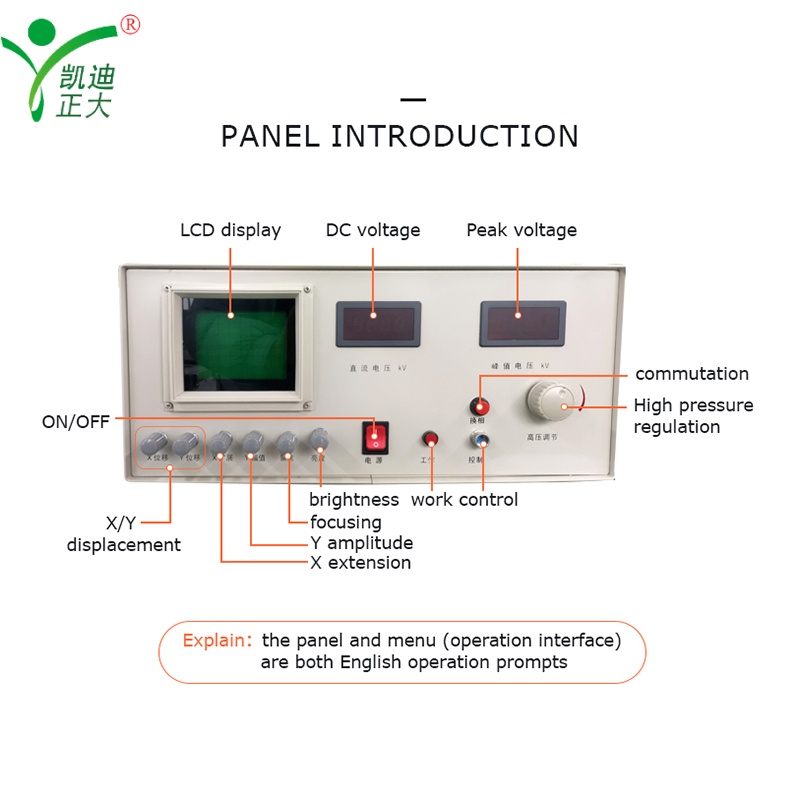

Profile:

KD2684 uses pulse waveform comparison to test inter-turn insulation. It detects breakdown, corona, wrong wiring, broken wire, turn difference and short circuit. With built-in oscilloscope, adjustable waveform, high integration and low failure rate, it ensures winding insulation reliability.

Features:

  • Detects inter-turn insulation breakdown and corona discharge accurately
  • Tests wrong wiring, misplaced winding and broken winding effectively
  • Identifies turn number difference and local short circuit clearly
  • Maintenance-free design with easy wiring and operation
  • High integration, stable performance and low failure rate
  • Waveform and amplitude adjustable for precise judgment

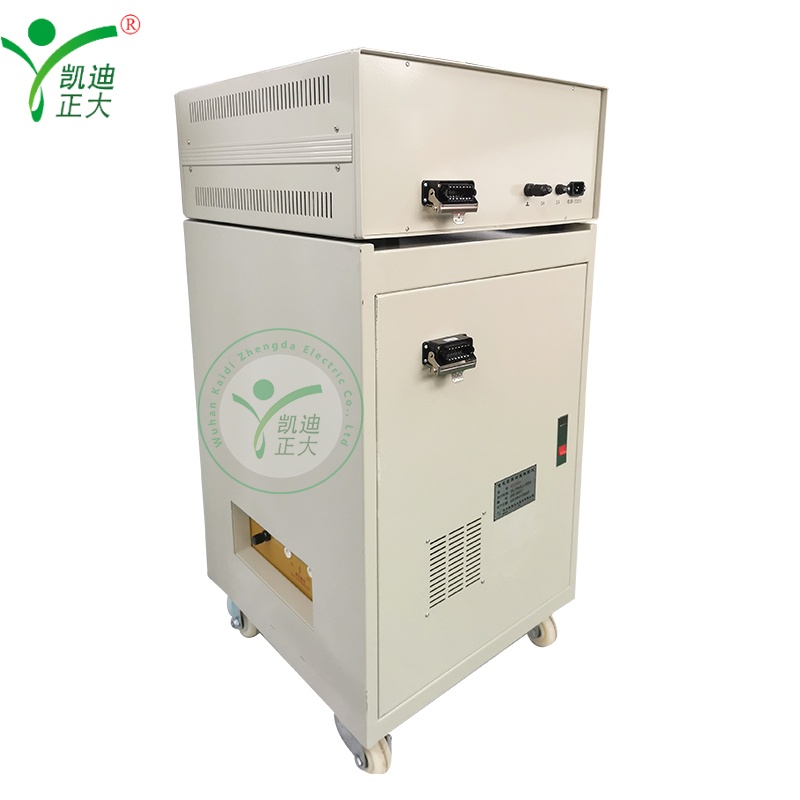

Parameter:

  • Peak voltage: 500V–5KV / 500V–10KV
  • Peak test error: ≤5% (1–10kV)
  • Waveform rise time: 0.5μS or 0.2μS
  • Power supply: AC220V±5%, 50Hz
  • Power consumption: <100W (5KV); <800W (10KV)
  • Dimensions: 48×26×39cm (5KV); 90×46×55cm (10KV)
  • Weight: 24Kg (5KV); approx.70Kg (10KV)
