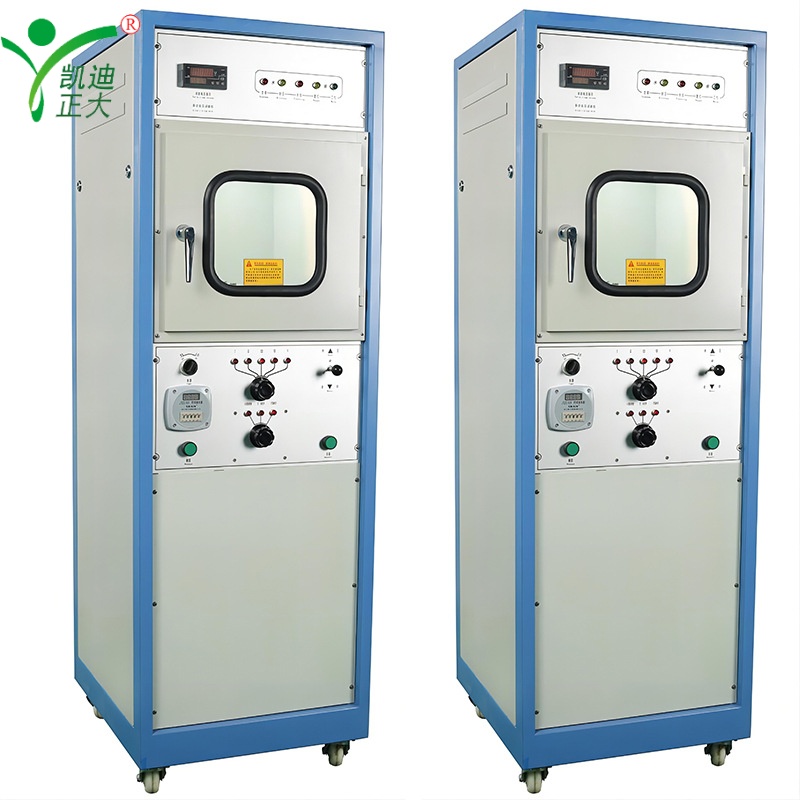

KDZD-50 High-Temperature Film Voltage Breakdown Tester (with Thermal State)
KDZD-50 High-Temperature Film Voltage Breakdown Tester (with Thermal State)

KDZD-50 High-Temperature Film Voltage Breakdown Tester (with Thermal State)

Applications:

Used for breakdown and withstand voltage test of enameled round/flat wires (≥0.02mm) in wire and cable, motor, electrical appliance industries. Works with RD-300 thermal chamber for high-temperature test; applicable in labs and factories under 0–40℃, humidity ≤85%.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDZD-50 complies with GB/T4074.5-2008/IEC60851-5. It supports 5 independent test stations, 0–20kV adjustable voltage, auto boost, breakdown alarm and data storage. Matching RD-300 thermal chamber (RT+10–300℃) for hot-state test.

Features:

  • 5 independent high-voltage channels for separate or simultaneous test
  • 11.5-inch touch screen, easy operation and clear data display
  • Auto voltage boost, breakdown detection and data storage
  • Safety door interlock ensures high-voltage test safety
  • Supports PC communication and U disk data export
  • Manual / automatic dual test modes available

Parameter:

  • Test voltage: 0–20000V AC, 50Hz, error ±3%
  • Breakdown current: 5±0.5mA, voltage drop ≤2%
  • Boost speed: 20V/S, 100V/S, 500V/S by gear
  • Transformer capacity: >900VA
  • Withstand time: 0–10 hours adjustable
  • Working environment: 0–40℃, humidity ≤85%
  • Power supply: AC220V±5%, 50Hz, power ≤1200W
  • Dimensions: 550×600×1700mm, Weight: 120kg
  • RD-300 temp range: RT+10–300℃, fluctuation ±0.5℃
  • RD-300 chamber: 450×550×550mm, power 1750W
