KDZD-10/35kV XLPE Cable Oil Cup Terminal
KDZD-10/35kV XLPE Cable Oil Cup Terminal

KDZD-10/35kV XLPE Cable Oil Cup Terminal

Applications:

Used for partial discharge and power frequency withstand voltage test of 10–35kV XLPE cables in cable factories, testing institutions and power engineering labs. Applied in indoor high-voltage test environment with independent grounding, dry and non-explosive conditions.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

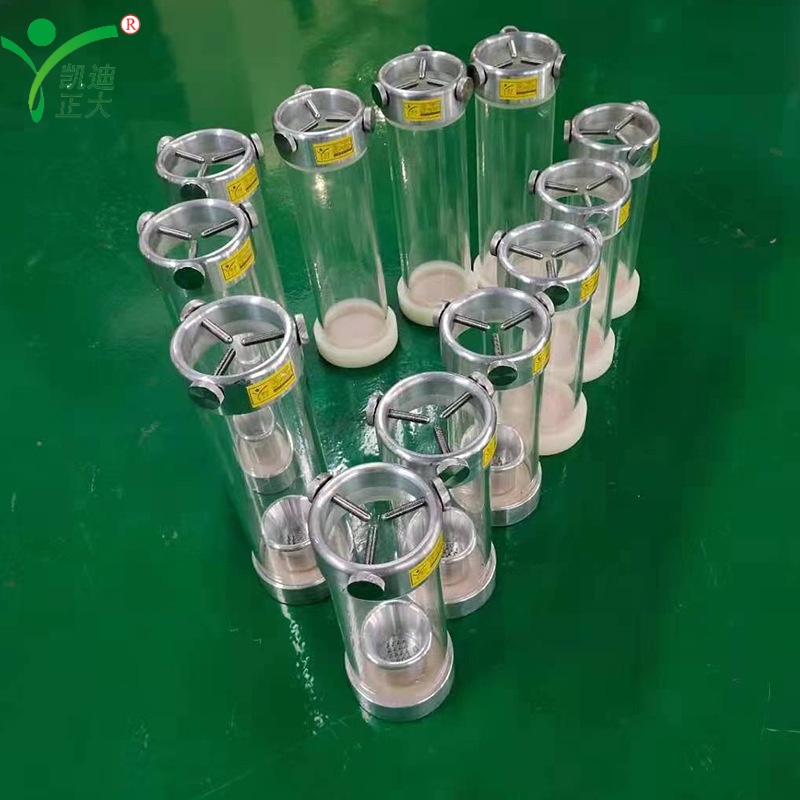

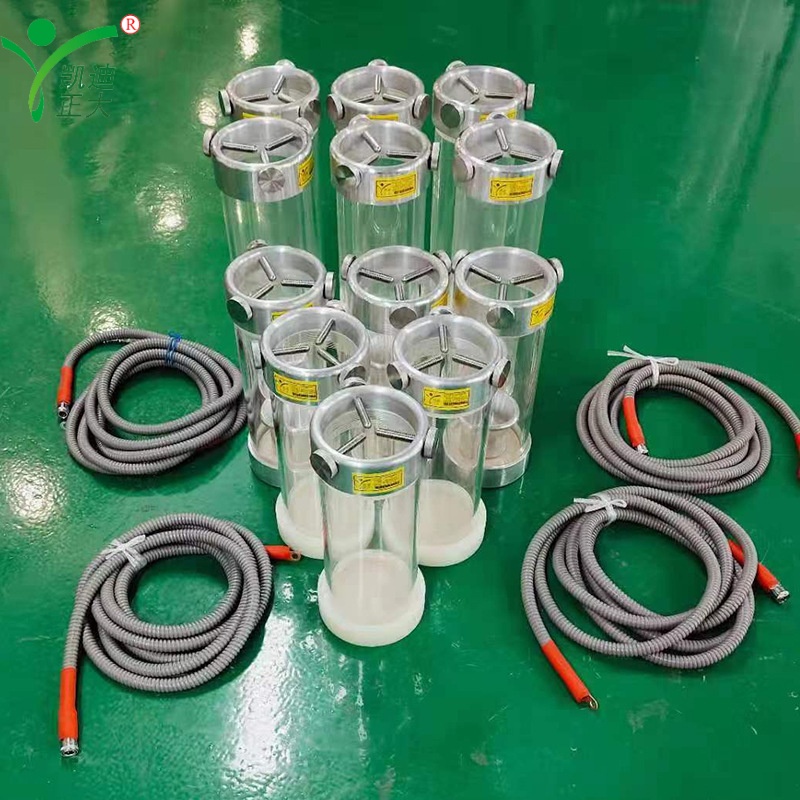

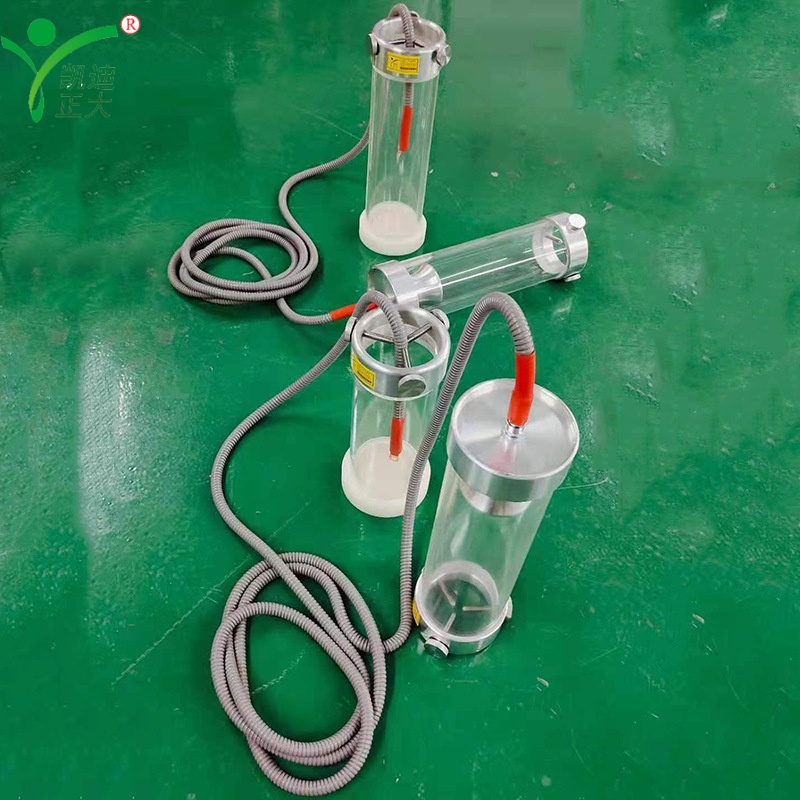

KDZD-10/35 is a suspended oil cup terminal for XLPE cable tests. It simplifies preparation, halves setup time, ensures low partial discharge and stable performance. Composed of PMMA tube, flange and shielding cover, easy to install and safe to operate.

Features:

  • Suspended structure for easy installation and operation
  • Low partial discharge level ensures accurate test data
  • Greatly shortens test preparation time by half
  • Equipped with stress cone for 35kV cable field optimization
  • Compatible with single-core and three-core XLPE cables
  • Reliable shielding design to avoid tip discharge

Parameter:

  • Model: KDZD-10kV / KDZD-35kV
  • Partial discharge: <2pC at 25kV (10kV); <2pC at 45kV (35kV)
  • Power frequency withstand voltage: 35kV–65kV
  • Structure: suspended type
  • Dimensions: Φ120×500mm
  • Grounding resistance: ≤1Ω
  • Grounding cable: ≥25mm² insulated flexible cable
  • Insulation medium: insulating oil (breakdown ≥40kV), silicone oil, etc.
