Profile:

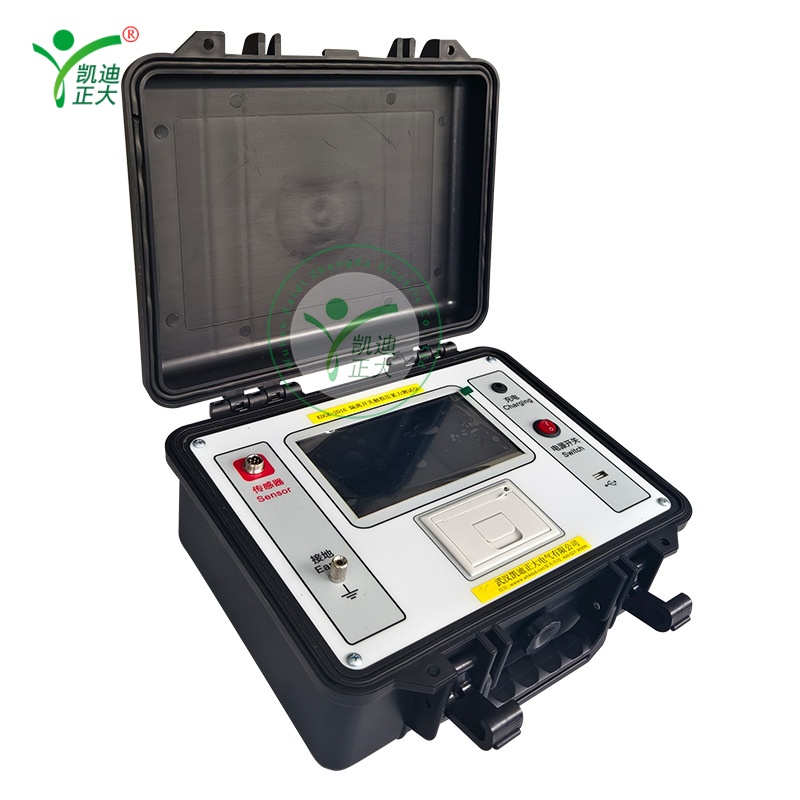

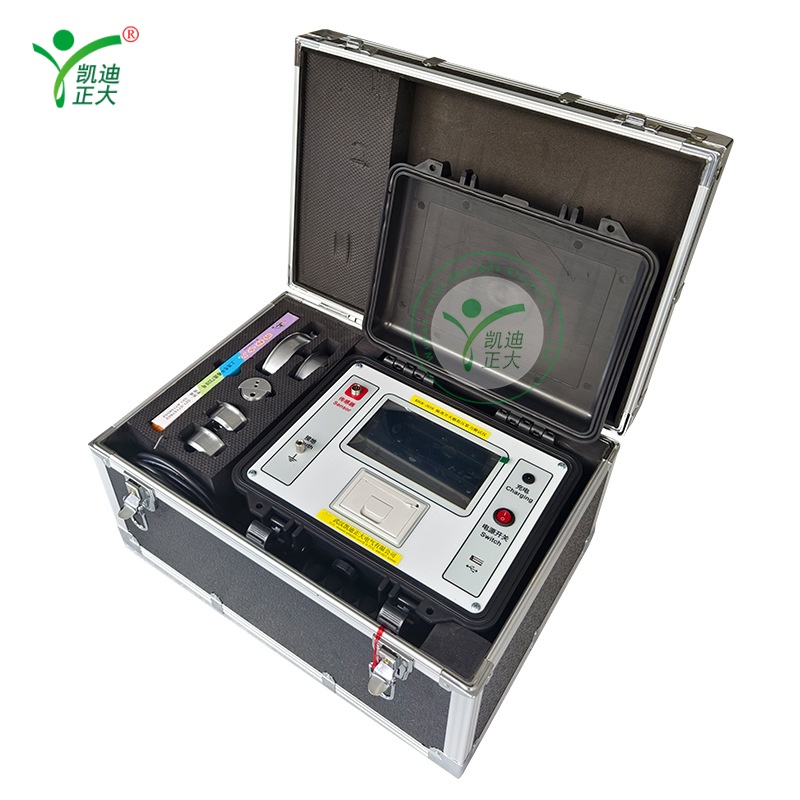

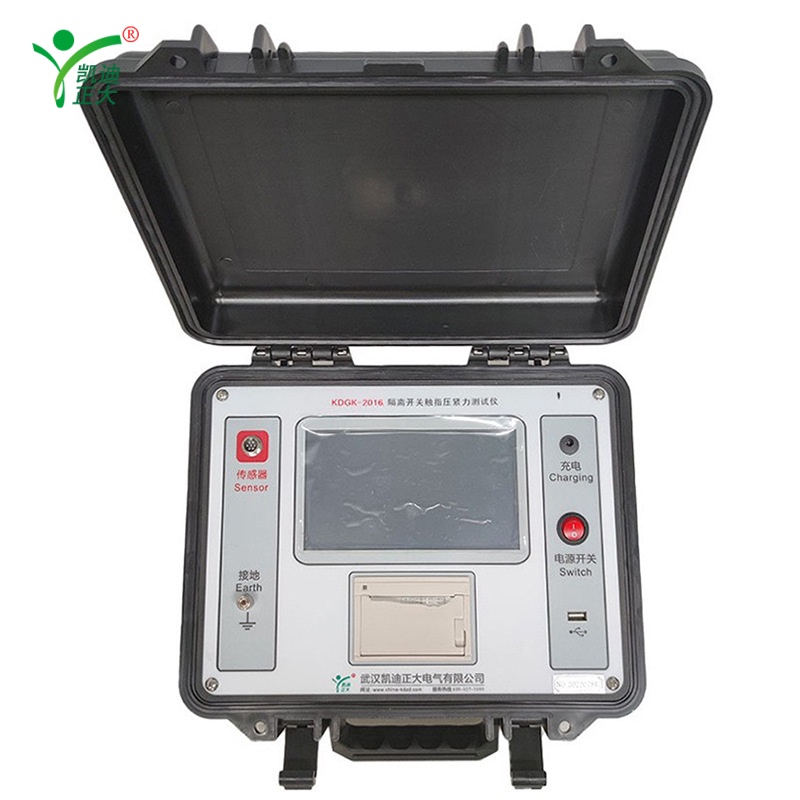

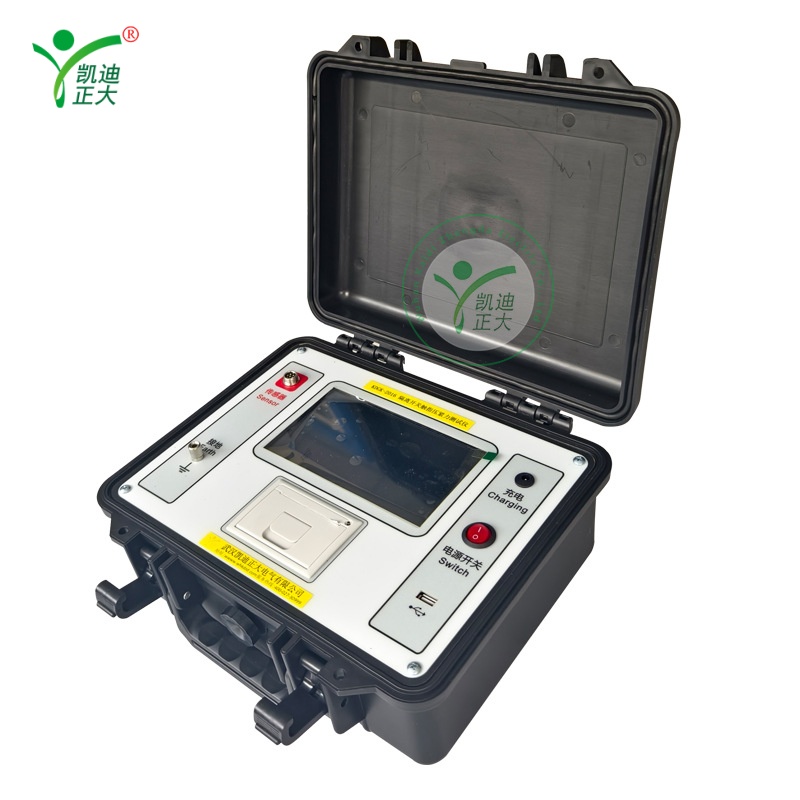

The KDGK-2016 isolation switch contact pressure tester can display and remember the contact pressure of the contact fingers at each pair of contact positions by simply opening the sensor that simulates the contact of the test clamp at each contact position. Effectively solved the problem of measuring finger pressure.
The KDGK-2016 isolation switch contact finger pressure tester can also be used by isolation switch manufacturers to inspect the contact finger pressure; Changing the shape of the pressure sensor can also measure the finger pressure of the circuit breaker.
Features:
Wide applicability: By adjusting the sensor opening distance size, it can measure the contact pressure of domestic 10KV-500KV and imported multi series isolating switches, including GW4, GW5, GW6, GW7, GW10, GW16, GW17, GW22, GW23, etc., to meet the needs of different users.
Special design: For the folding arm type (GW6, GW16, GW17, GW22, GW23, etc.) series isolating switches, sensors with the same shape and size as the stationary contacts have been specially designed to make measurement more convenient and accurate.
Intelligent operation: microcomputer control, easy to operate, with memory function, can easily obtain and save measurement results.
Strong anti-interference ability: With strong anti-interference ability, it can work stably in various environments.
Portable design: small size, light weight, easy to carry, suitable for measuring the contact pressure of isolation switches in various occasions.
Parameter:
1. Measurement range: ≤ 500N Error: ≤ 1% Reading ± 1N
2. Measuring diameter (finger opening distance): 6 ± 0.2mm, adjustable for fine adjustment; 8 ± 0.2mm adjustable; 10 ± 0.2mm adjustable; Other types, such as plum blossom contacts (customizable)
3. Sensor signal line length: 3m
4. Dielectric strength: The power supply can withstand the 1.5KV power frequency voltage of the casing for 1 minute without flashover or arcing.
5. Insulation resistance:>2M Ω.
6. Built in lithium battery: Power supply working time: ≥ 6 hours (customizable).
7. Charging method: Connect the dedicated charger to the lithium battery charging interface on the panel for charging.
8. Working environment: -10~40 ℃, ≤ 80% RH, atmospheric pressure 86~106kpa
9. Power supply voltage: Internal lithium battery: 16.8V
