Profile:
KDYD2835KV interturn impulse withstand voltage tester is a kind of test instrument which adopts pulse waveform comparison method to simulate the overvoltage of the second coil or winding with high voltage shock wave and distinguish the waveform difference of the second winding by oscilloscope. It can quickly and correctly judge the coil or winding turn insulation corona discharge, local or interphase short circuit, open circuit, wiring errors, coil balance and other faults.
Features:
KDYD2835KV interturn impulse voltage tester is suitable for winding interturn insulation detection of large and medium-sized high voltage, AC-DC motor with rated voltage of 10000V and below; It can also be used to detect the insulation between turns of transformer winding and electrical coil winding. Due to the motor and transformer windings due to the insulation structure and insulation materials are inconsistent, especially the operator's different technological level, in the winding, wiring, scraping, joint end shaping, handling and other processes will cause different degrees of insulation damage, so that the winding there are various forms of inter-turn insulation failure, therefore, inter-turn insulation is the weak link of the motor and transformer.
Parameter:
Technical index
Input voltage: 220V±5%; Frequency 50Hz/60Hz ±2%;
Test range: 0 ~ 35kV continuously adjustable; ±5%;
Trigger times: 3.25 times/second
Wave front time: 0.1-0.5µs (standard);
Tolerance is: (+0.3)/(-0.1)µs;
Polarity: negative polarity;
Pulse capacitance: 0.05μF;
Maximum output energy: 30J;
Power consumption: 1000VA;
Insulation resistance: The insulation resistance of the power input to the rack is greater than or equal to 20MΩ.
Dielectric strength: the power input to the frame can withstand 1500V/50Hz 1min voltage test without flying fox, no breakdown phenomenon;
Ambient temperature: 0 ~ 40 degrees;
Relative humidity: ≤80%(40 degrees);

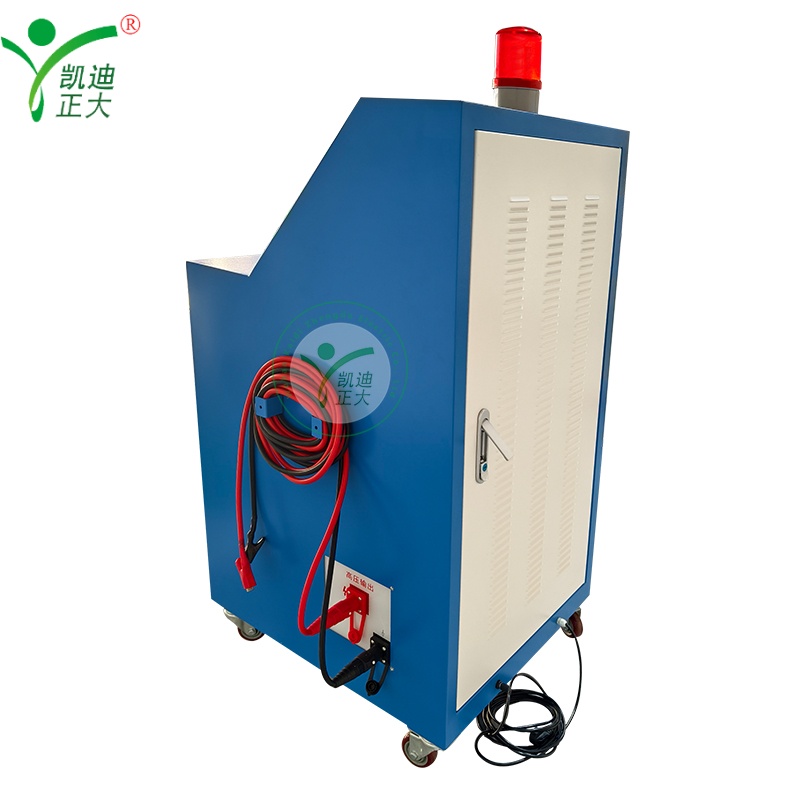

Dimensions: 700×700×1600; (Equipped with universal wheel at the bottom, easy to move)
Weight: 100kg;

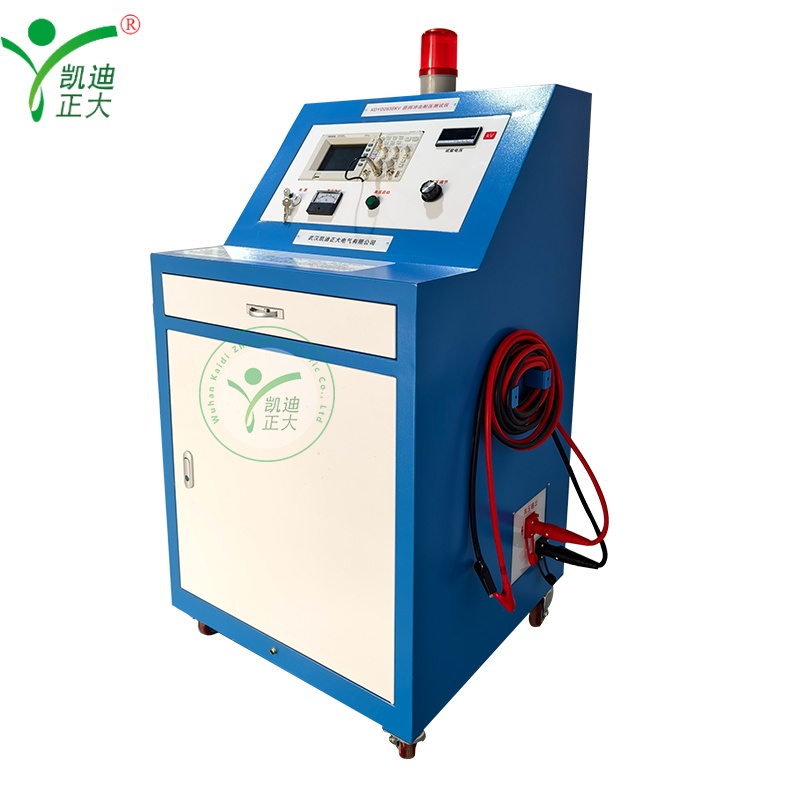

Style: cabinet type;
Scope of application: Rated voltage 10000V and below AC and DC motor coil and the whole turn insulation impact voltage test.
