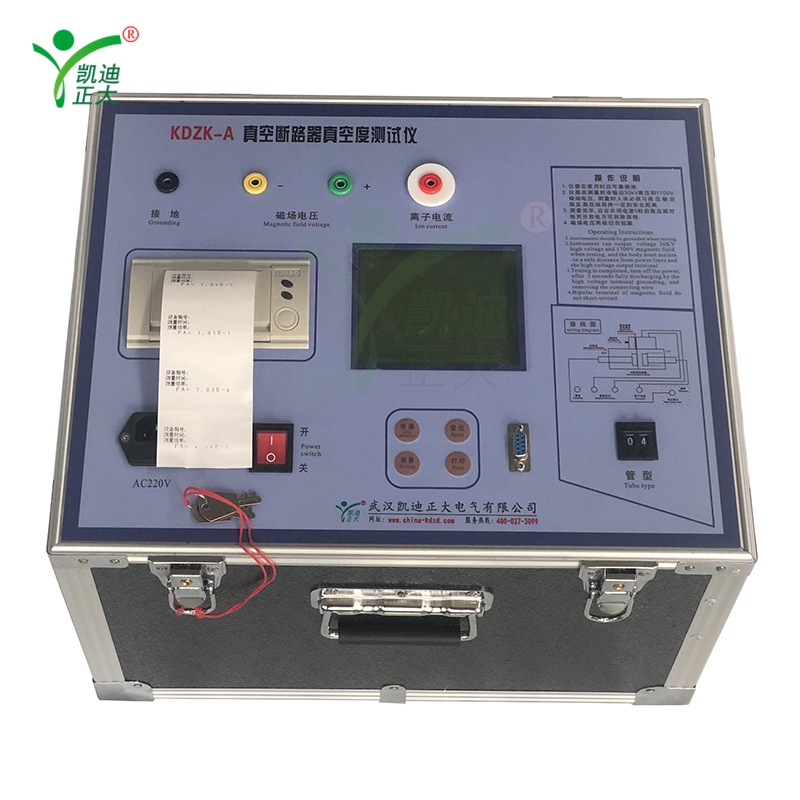

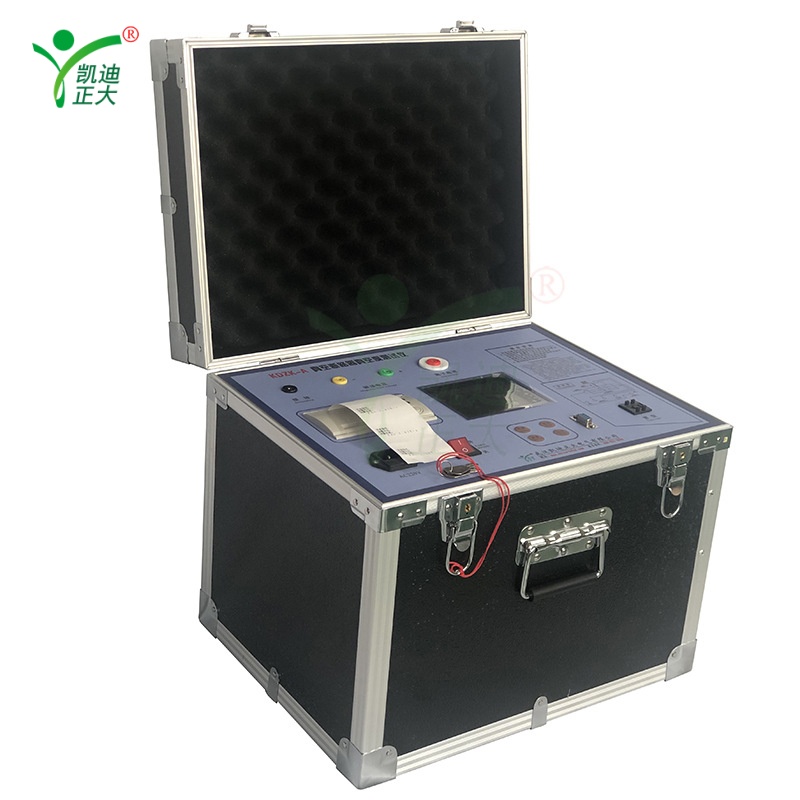

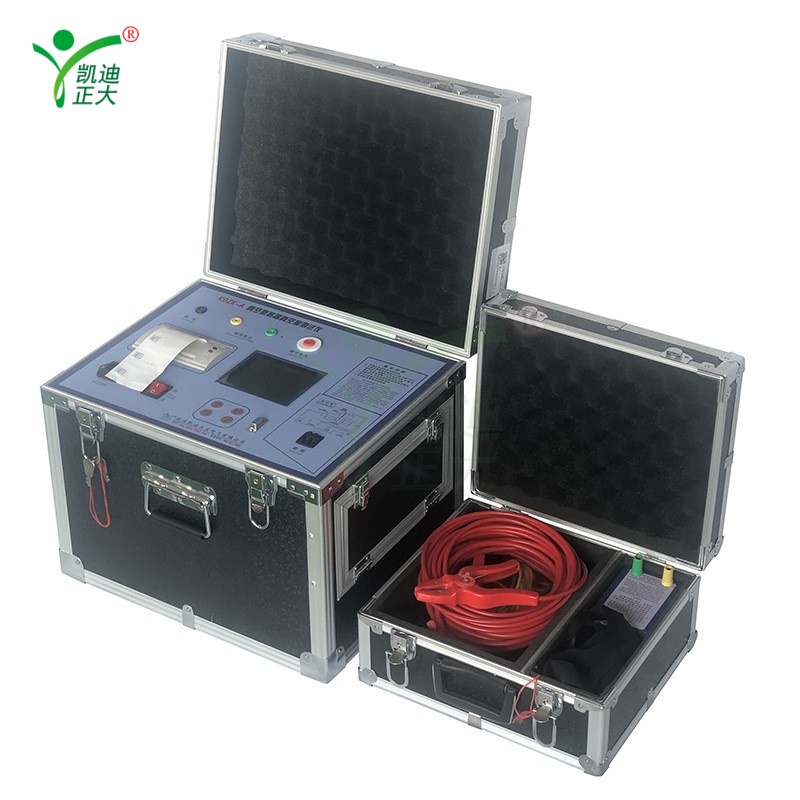

The KDZK-A vacuum degree tester is an equipment for evaluating the vacuum degree of a vacuum arc extinguishing chamber. It is based on the principle of magnetron discharge and uses a single-chip computer as the main control unit to achieve automation in the testing process. The sampling design of this instrument has changed from the previous method of using peak current for calibration to using ion charge for calibration. In this way, the interference of transient power supply during the testing process is effectively suppressed, making the testing stable and reliable.
The KDZK-A vacuum degree tester is a device for identifying the vacuum degree of a vacuum arc extinguishing chamber.
The KDZK-A vacuum degree tester has high measurement accuracy, simple operation, easy portability, strong anti-interference ability, and is suitable for on-site testing by power supply units. It is a standing instrument for the production, installation, commissioning, and maintenance of vacuum circuit breakers.

1. It can quantitatively measure the vacuum degree inside the arc extinguishing chamber of various types of vacuum switches;
2. The vacuum switch does not need to be disassembled during on-site measurement;
3. The test results are accurate and reliable, and a high-speed thermal printer is used for faster printing;
4. LCD display makes operation simpler and more convenient;
5. It can save, print, and view the historical test data of the test;
6. Large screen LCD display of Chinese characters provides richer content and makes operation simpler and more convenient;
7. The instrument is equipped with an RS232 communication interface, which can be connected to a computer to achieve various functions such as instrument control and operation through the computer;
8. The instrument is lightweight and easy to carry;



1. Power supply: AC220V+15%, 50Hz;
2. Measurement range: 10-5-10-1Pa;
3. Electric field voltage: 30KV;
4. Magnetic field voltage: 1700V;
5. Test accuracy: 10-5 to 10-4 Pa, 20-10%
10-4～10-3 Pa，10-10%
10-3～10-2 Pa，5-10%
10-2～10-1 Pa，5-10%
6. Test object: Various types of vacuum switch tubes.
7. Testing method: A new excitation coil is used for non disassembly measurement of vacuum tubes.
8. Scope of application: This instrument is a multi-purpose type that can measure multiple types of vacuum switches.
9. When testing the vacuum degree, the opening distance of the switch tube should be used normally.
10. Operating environment: -10 ℃ to 40 ℃;
11. External dimensions: 460mm × 335mm × 330mm.
12. Host weight: approximately 12kg;
