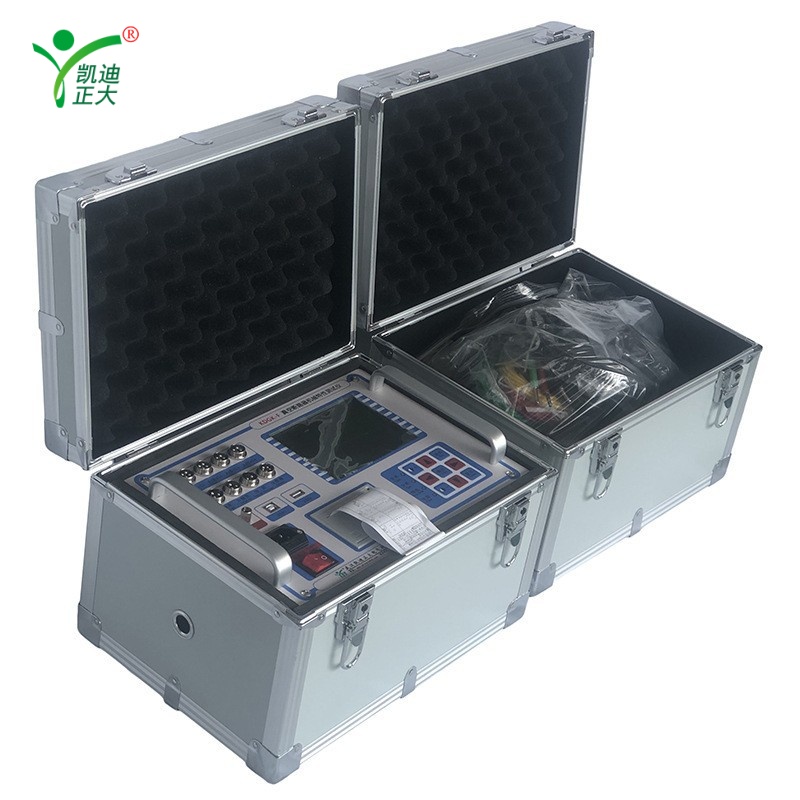

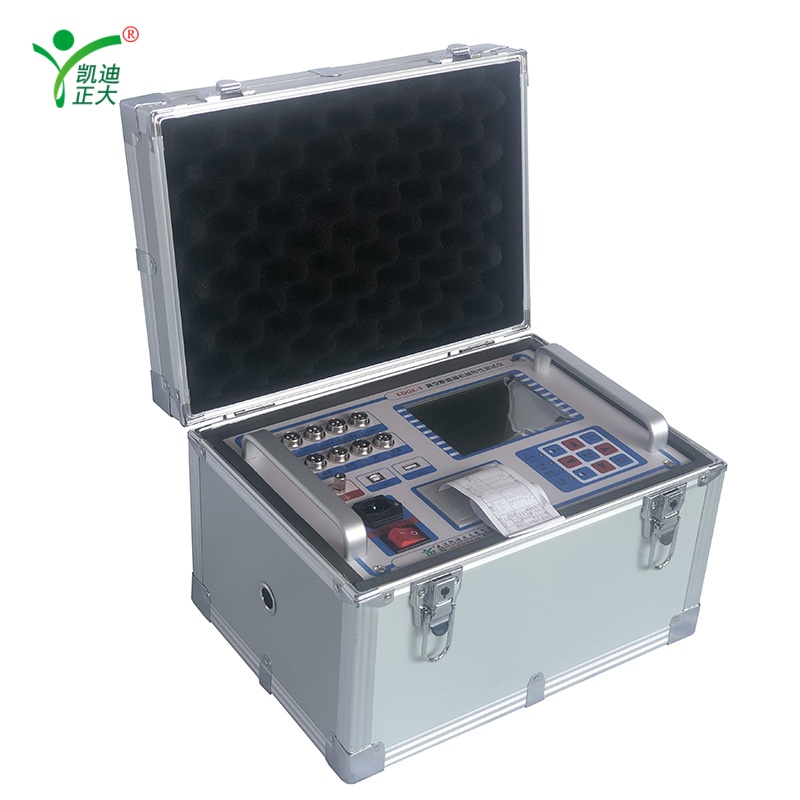

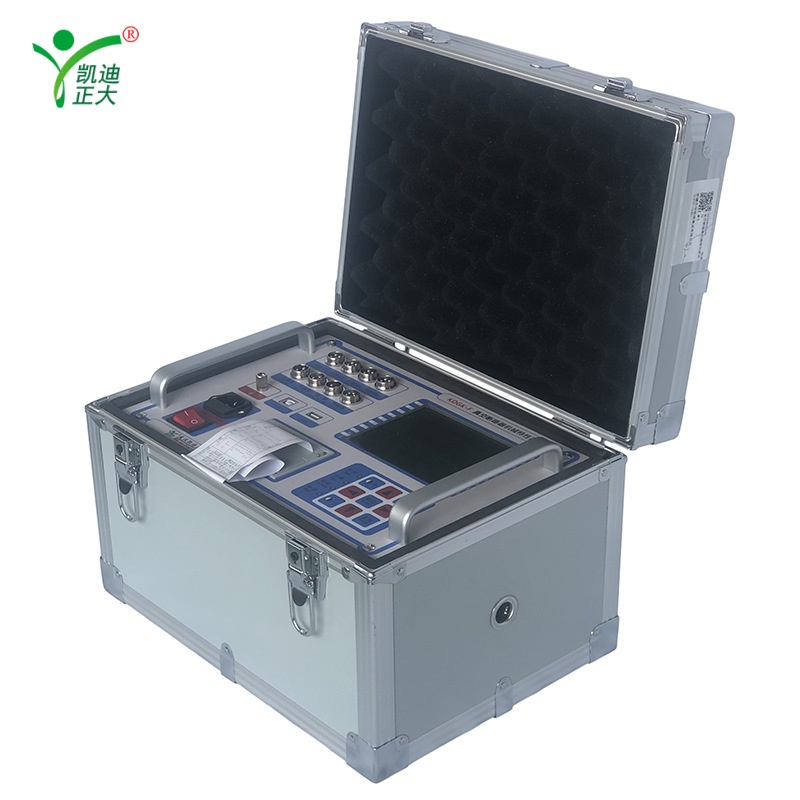

The KDGK-F circuit breaker mechanical characteristic tester can be used for testing and measuring the mechanical characteristic parameters of high-voltage switches in power systems such as vacuum, sulfur hexafluoride, low oil, and high oil at various voltage levels. The measurement data is stable and has strong anti-interference ability. It can be used for experiments in power stations of 500KV level and below. The wiring is convenient and the operation is simple. It is a common tool for high-voltage switch maintenance and testing.

1. Suitable for mechanical characteristic testing of SF6 switches, GIS composite appliances, vacuum switches, and oil switches.
2. Strong anti-interference ability, able to easily test and accurately measure even when the bypass busbar of a 500KV substation is live.
3. Universal speed sensor, linear sensor, rotation sensor, easy and simple installation.
4. Once the switch is activated, obtain all the data and corresponding waveform diagrams for the mechanical characteristic test of the switch.
5. The host can store on-site test data and has a real-time clock for easy archiving and saving of test dates and times.

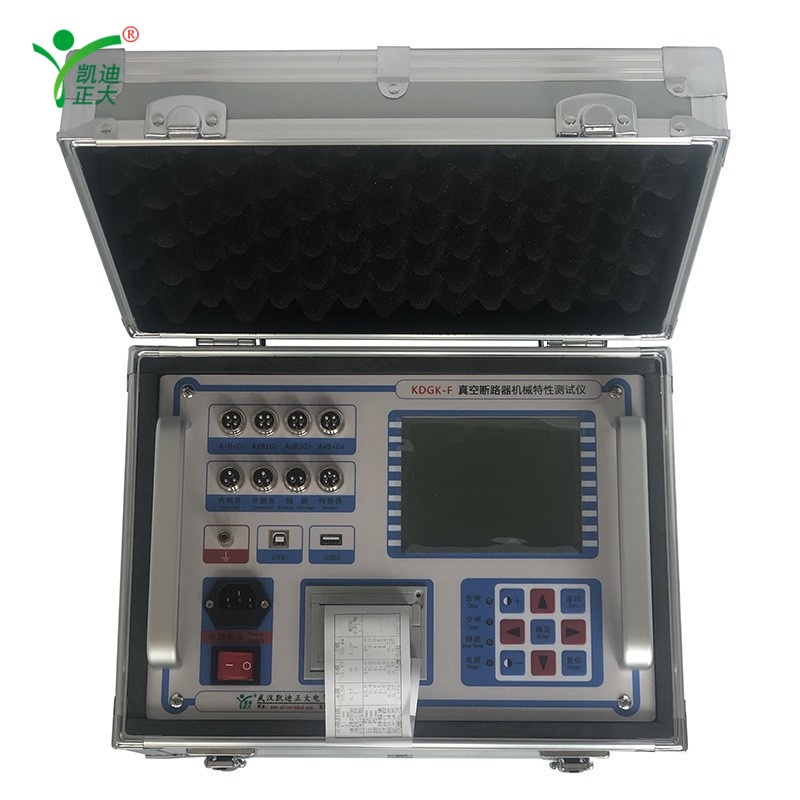

6. Host large screen, wide temperature range, direct perspective, background light LCD, display all data and maps, LCD contrast electronic adjustment, power-off memory.
7. The instrument has a built-in printer that can quickly print all data and graphs at any time.

Basic parameters
Time: Range: 4000.0ms+6000ms Resolution: 0.1ms
Error: ① Within 100ms, 0.1ms ± 1 word; ② More than 100ms, 0.1% ± 1 word; ③ Same period
Speed: Range: 20.00m/s Resolution: 0.01m/s
Error: ① Within 0-2m/s ± 0.1m/s ± 1 word; ② Over 100ms ± 0.2m/s ± 1 word

trip:
Vacuum circuit breaker: range: 50.0mm; Resolution: Range of 0.1mm; Error: 1% ± 1 word
SF6 circuit breaker: range: 300.0mm; Resolution: Range 1mm; Error: 1% ± 1 word
Low oil circuit breaker: range: 1000.0mm; Resolution: Range 1mm; Error: 1% ± 1 word
Current: Range 15.00A, Resolution 0.01A
Output power supply: DC 30~250V, digital adjustable/15A (instantaneous operation)
Dimensions: 360mm (L) × 280mm (W) × 300mm (H)
Weight: 9kg

Product performance
Time: The inherent opening and closing time of 12 fracture surfaces, in phase synchronization and phase synchronization.
Recloser: The closing closing, opening closing, and opening closing process time for each break: the first closing time, the first closing time, the second closing time, the metal short time, and the no current time value.
Bounce: the closing bounce time, bounce frequency, bounce process, and bounce waveform of each fracture; The rebound amplitude of each break.
Speed: initial opening and closing speed, maximum speed, time stroke characteristic curve.
Travel: total travel, opening distance, overtravel, overshoot, rebound amplitude.
Current: The opening and closing current values and waveform of the opening and closing coils.
Action voltage: The machine provides a DC30-250V/20A digital adjustable circuit breaker action power supply, which automatically completes the low voltage action test of the circuit breaker and measures the action voltage value of the circuit breaker.
