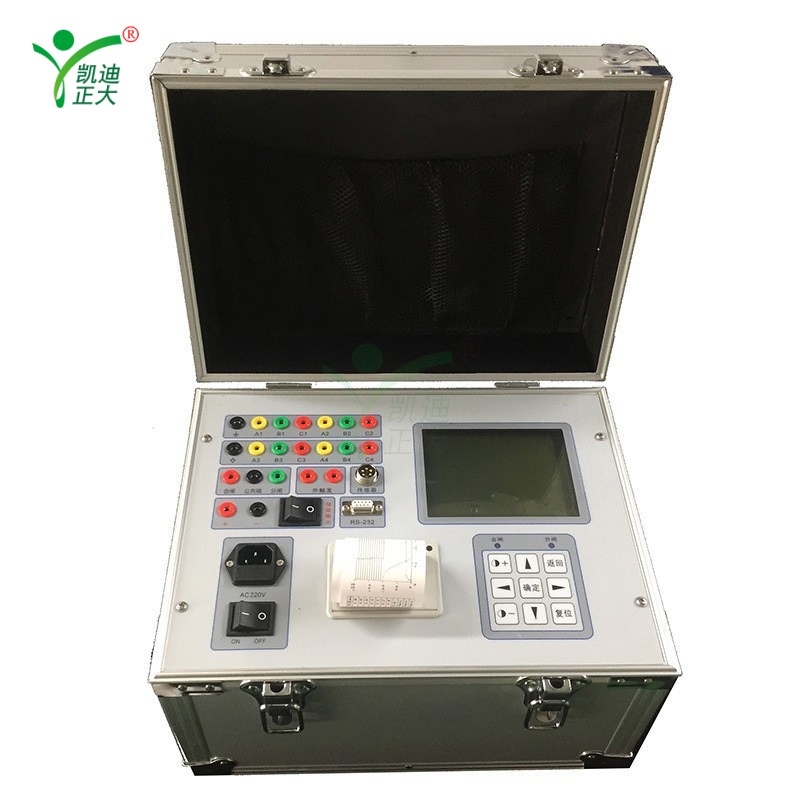

The KDZD high-voltage switch dynamic characteristic tester is suitable for mechanical characteristic testing of various SF6 switches, GIS composite electrical appliances, vacuum switches, and oil switches.

Performance characteristics
Time: The inherent opening and closing time of 12 fracture surfaces, in phase synchronization and phase synchronization.
Recloser: The closing closing, opening closing, and opening closing process time for each break: the first closing time, the first closing time, the second closing time, the metal short time, and the no current time value.
Bounce: the closing bounce time, bounce frequency, bounce process, and bounce waveform of each fracture; The rebound amplitude of each break.
Speed: Just in and out speed, speed, time stroke characteristic curve.
Travel: total travel, opening distance, overtravel, overshoot, rebound amplitude.
Current: The opening and closing current values and waveform of the opening and closing coils.
Energy storage: In the instrument's settings interface, after turning on the voltage adjustment function, the screen displays the current voltage value. Fine adjustment with up and down keys, coarse adjustment with left and right keys. After adjusting to the required voltage, keep this interface still, turn on the energy storage switch, and there will be output.
Action voltage: The machine provides a DC20-256V/15A digital adjustable circuit breaker action power supply, which automatically completes the low voltage action test of the circuit breaker and measures the action voltage value of the circuit breaker.

characteristic

Suitable for mechanical characteristic testing of SF6 switches, GIS composite appliances, vacuum switches, and oil switches.
Strong anti-interference ability, able to easily test and accurately measure even when the bypass busbar of a 500KV substation is live.
Linear and rotary sensors, easy and simple to install.
Once the switch is activated, the mechanical characteristic test data and corresponding waveform diagram of the switch can be obtained.
The host can store on-site test data and has a real-time clock inside, making it easy to archive and save test dates and times.
Host large screen, wide temperature range, direct perspective, background light LCD, display data and graphics, LCD contrast electronic adjustment, power-off memory.
Menu operation, easy to use. The instrument is equipped with a built-in printer, which can print data and graphs in real-time and quickly.

Definition of Terms
1. Same phase and same period: The difference between the opening (closing) time and the same phase.
2. Phase to phase synchronization: The difference between the opening (closing) time of the three phases.
3. Average speed: During the opening (closing) process, 10% of the total travel of the moving contact is removed from the front and back respectively,
Take the middle 80% as the ratio of the stroke of the moving contact to the time.
4. Speed: During the opening (closing) process, after the moving contact starts to move, take every 10ms of the moving contact's movement as a speed unit until the moving contact stops, and obtain several speed unit values, among which the unit speed value is the opening (closing) speed.
5. Opening (closing) speed: Depending on the manufacturer of the tested switch and the switch model, each manufacturer has defined different speeds
6. Fast opening and closing speed: This tester includes various definition sections for users to choose from.

Usage environment
Input power supply 220V ± 10% 50Hz ± 10% atmospheric pressure 86-106kpa
Temperature -10~40 ℃ Humidity ≤ 80% RH

performance
Insulation resistance>2M Ω
The dielectric strength power supply can withstand the 1.5KV power frequency voltage of the casing for 1 minute without flashover or arcing.

Basic parameters
Time: Range 4000.0ms+6000ms Resolution 0.1ms
Error：
① Within 100ms, 0.1ms ± 1 word
② 0.1% ± 1 word above 100ms
③ Same period

Speed: Range 20.00m/s, Resolution 0.01m/s
Error within 0-2m/s ± 0.1m/s ± 1 word
Over 100ms ± 0.2m/s ± 1 word

trip:
Vacuum circuit breaker range: 50.0mm resolution: 0 1mm error: 1% ± 1 word
SF6 circuit breaker range: 300 0mm resolution: 1mm error: 1% ± 1 word
Low oil circuit breaker range: 1000.0mm resolution: 1mm error: 1% ± 1 word


Current: Range 20.00A, Resolution 0.01A
Output power supply: DC20-256V digital adjustable/20 instantaneous operation)

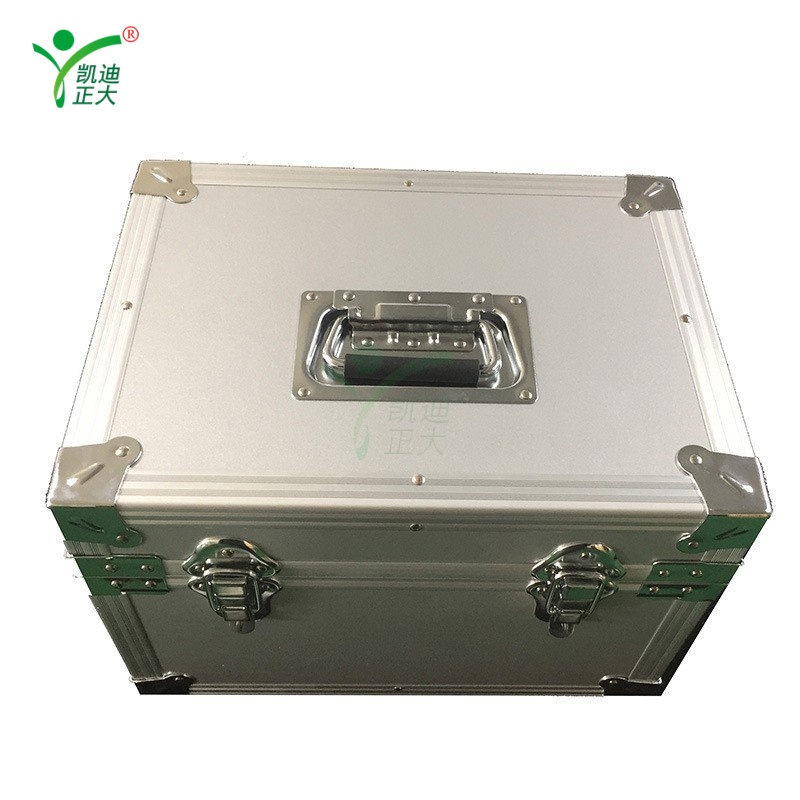

Dimensions: 360mm (L) × 280mm (W) × 300mm (H)
Weight: 9kg
