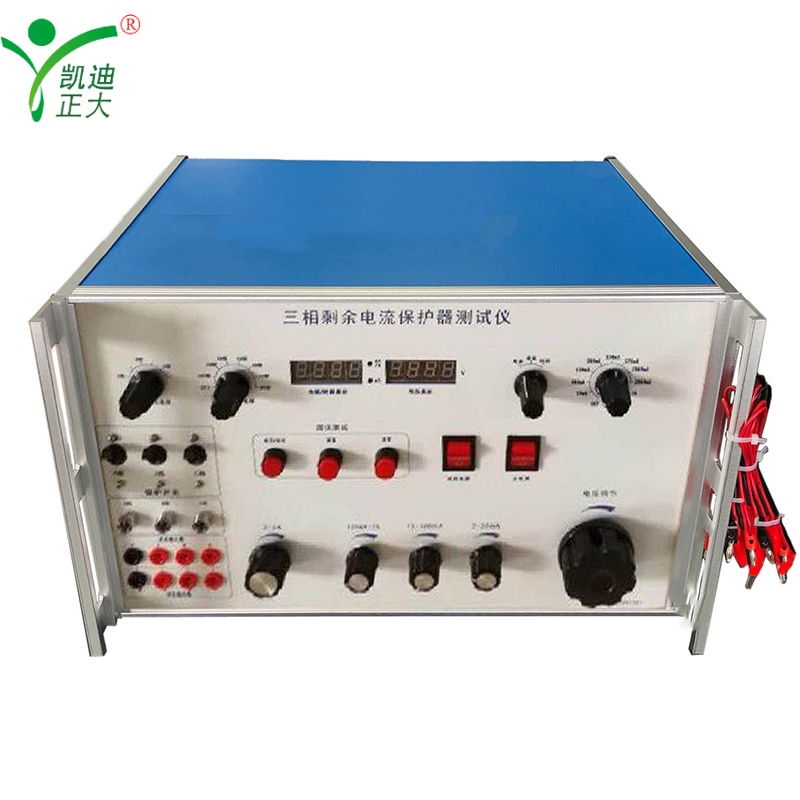

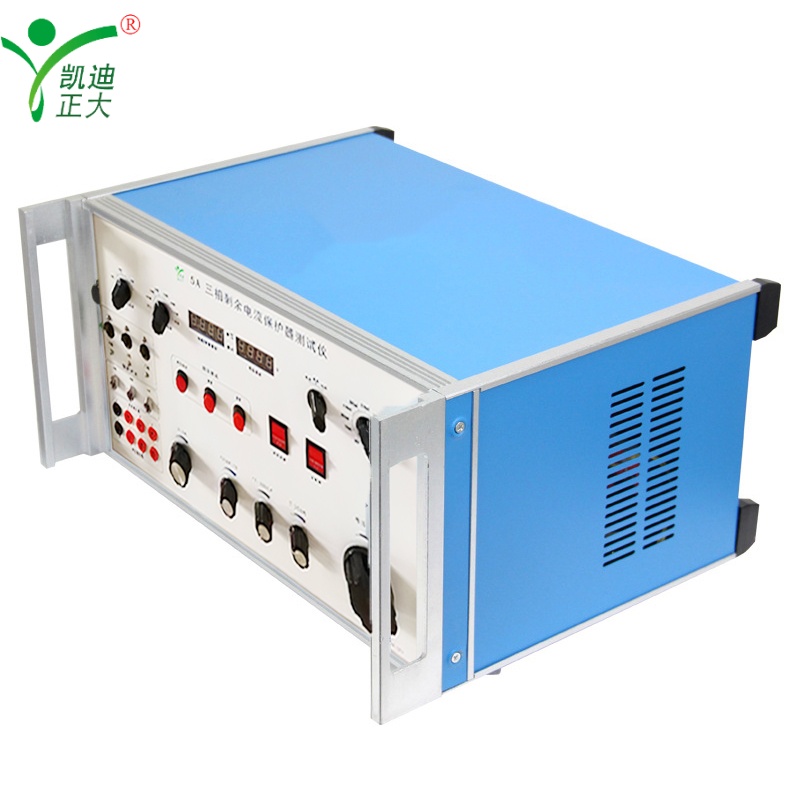

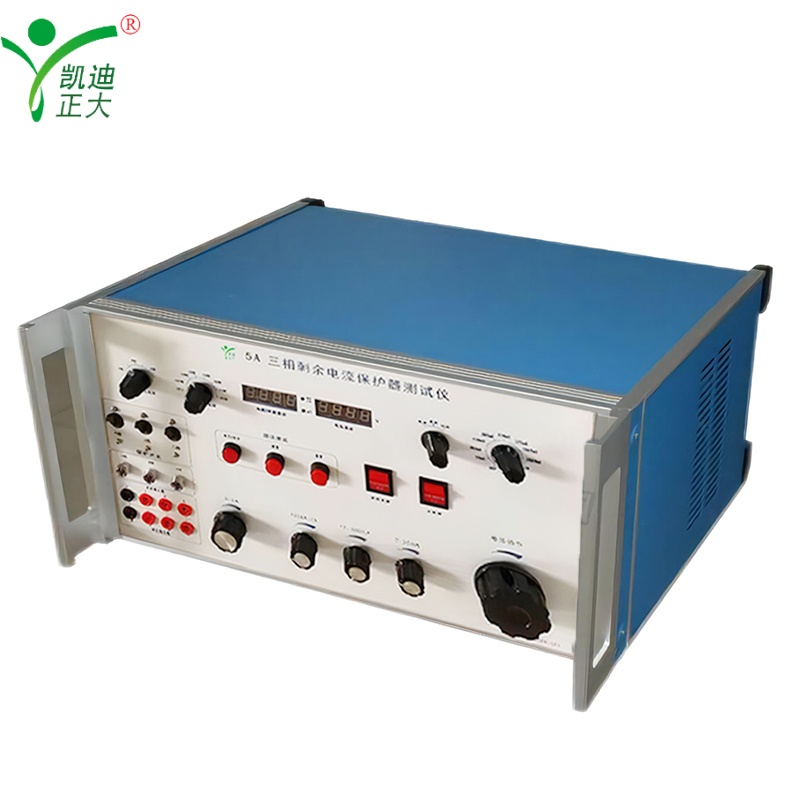

KDNM5000-10A-2 Residual Current Protector Tester
KDNM5000-10A-2 Residual Current Protector Tester

KDNM5000-10A-2 Residual Current Protector Tester

Applications:

Used for testing and calibrating electronic and magnetic residual current protectors (2P/3P/1P+N/3P+N/4P) in factories, labs, inspection stations and power maintenance units. Complies with GB6829-95 and GB16917.1-1997, working at 0–40℃, humidity 20–85%.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDNM5000-10A-2 tests AC-type RCD action characteristics with adjustable and fixed residual current output. It uses 3½-digit digital display, high-precision measurement, data hold after trip, and supports single-phase/three-phase four-wire test.

Features:

  • Supports electronic 2P/3P and magnetic 1P+N/2P/3P/3P+N/4P RCD test
  • Adjustable and fixed gear residual current output up to 10A
  • 3½-digit LED digital display with trip value hold function
  • High measurement accuracy: current ±1%, time ±0.2%+2ms
  • Provides single-phase and three-phase four-wire test voltage
  • Compact structure, easy wiring and stable performance

Parameter:

  • Adjustable residual current: 2–20mA, 20–100mA (2 gears)
  • Fixed residual current: 150mA, 200mA, 250mA, 375mA, 500mA, 1000mA, 2000mA, 3A, 10A (9 gears)
  • Test voltage: single-phase & three-phase four-wire adjustable
  • Display: 3½-digit LED digital tube
  • Resolution: residual current 0.01mA, action time 1ms
  • Measuring range: current 20mA/200mA/2A/10A; time 2s
  • Accuracy: residual current ±1%; action time ±0.2% +2ms ±1 digit
  • Working environment: 0–40℃, humidity 20–85%RH
  • Complies with standard: GB6829-95, GB16917.1-1997
