KDZK-F Generator Rotor AC Impedance Tester for Short Circuit Detection

KDZK-F Generator Rotor AC Impedance Tester for Short Circuit Detection

Applications:

Specialized for detecting inter-turn short circuits in generator rotor windings. It can also perform no-load/short-circuit tests on single-phase transformers and characterize current transformers and arc suppression coils. Ideal for power plants, generator maintenance, and electrical testing labs.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

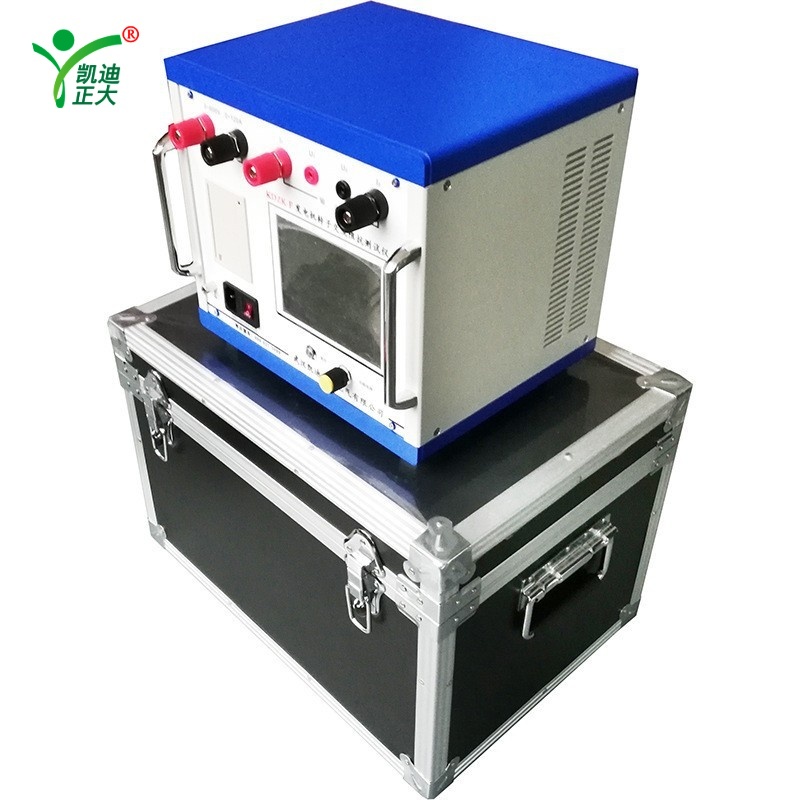

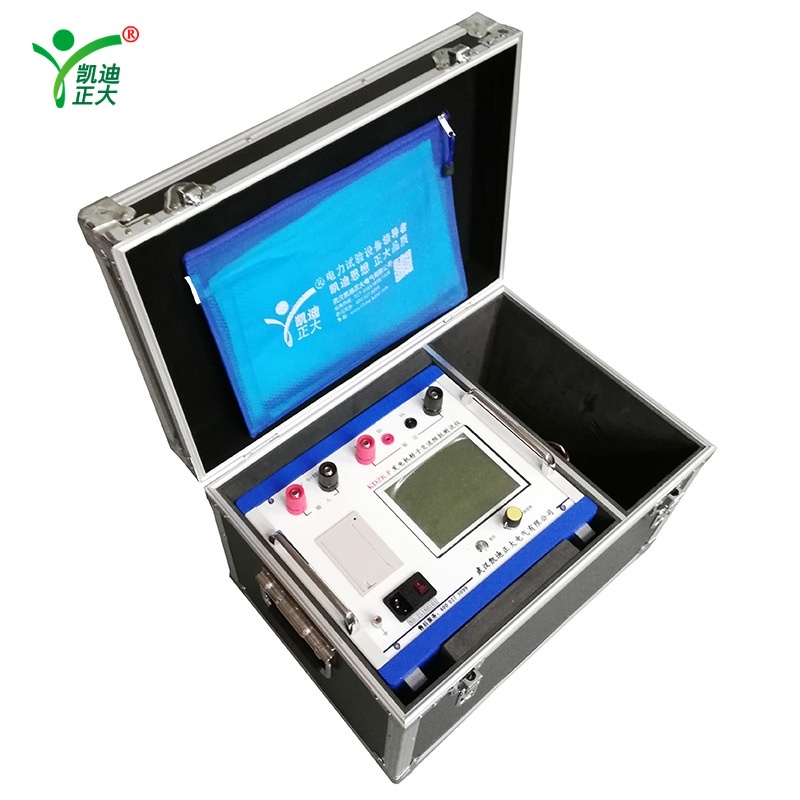

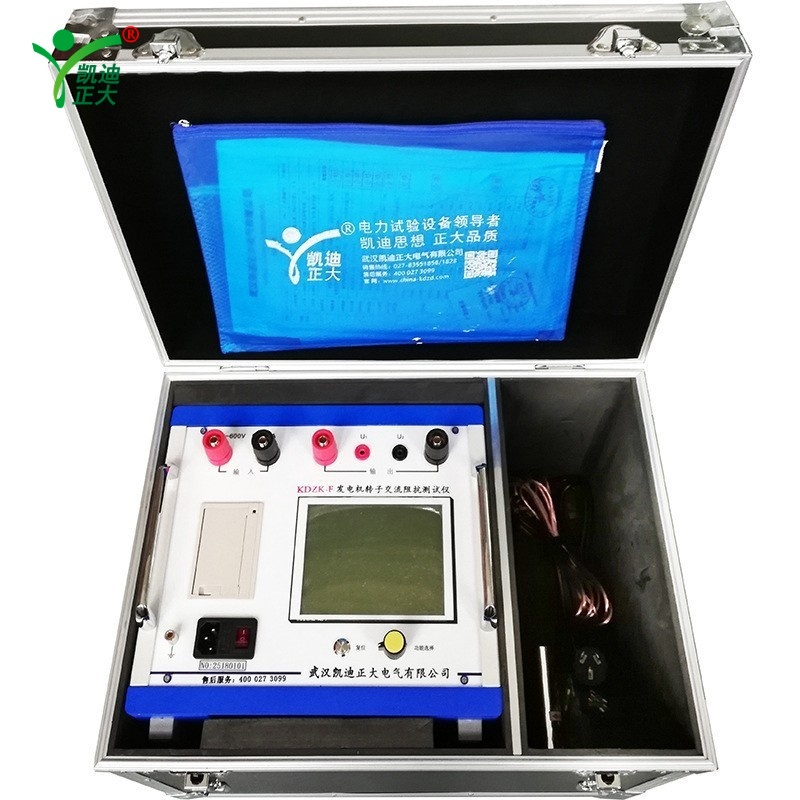

The KDZK-F is a dedicated tester for generator rotor AC impedance analysis, designed to identify inter-turn short circuits. It supports both automatic and manual (uni/bi-directional) measurement of voltage, current, impedance, power, and phase angle. Featuring a large Chinese menu interface and rotary mouse for intuitive operation, it includes a built-in thermal printer for real-time data and curve printing. It automatically adjusts protection thresholds to ensure safety and offers versatile testing capabilities for transformers and instrument transformers.

Features:

Dual measurement modes: automatic fast testing and manual selective testing
Large screen Chinese menu interface with rotary mouse for easy operation
Real-time display of test data (voltage, current, impedance, power, phase angle)
Built-in thermal printer for instant data and characteristic curve printing
Automatic protection threshold adjustment for equipment safety
Versatile: supports transformer no-load/short-circuit tests and CT/arc suppression coil characterization

Parameter:

AC Impedance: 0~99.9Ω (Class 0.2)
AC Voltage: 0~600V (Class 0.2)
AC Current: 0~120A (Class 0.2)
Active Power: 0~72kW (Class 0.5)
Speed Measurement: 10~10000rpm (Class 0.2)
Frequency: 45~75Hz (Class 0.2)
Input Terminal: 0~600V (from voltage regulator output)
Test Loop Voltage Range: 0~600V
Test Loop Current Range: 0~120A
Power Supply: AC 220V±10% 50Hz
Dimensions: 415×225×200mm
Weight: 5kg
