Profile:

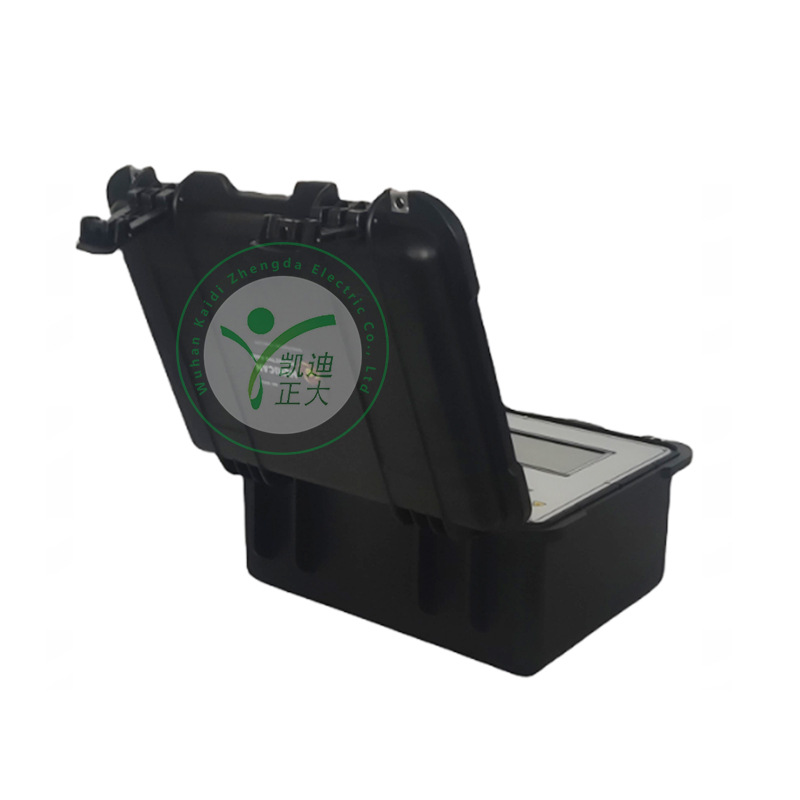

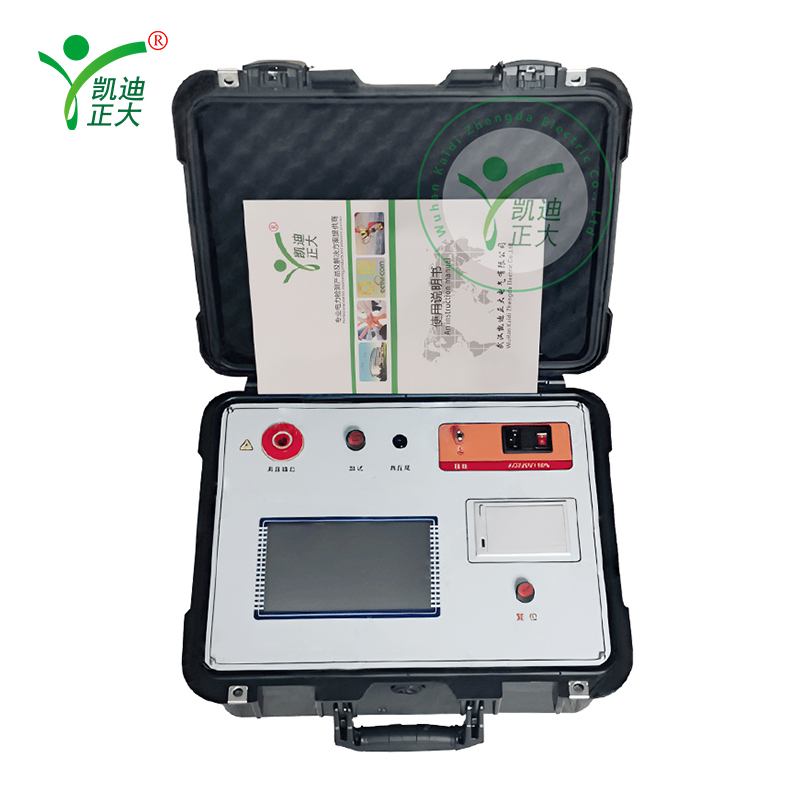

KDZD3000X is a dedicated tester for harmonic elimination resistors, featuring automatic I-V characteristic measurement and curve plotting. It can perform tests at six standard current points (0.3mA-10mA) and displays peak and root mean square voltage values. Equipped with a color LED touchscreen, built-in printer, and real-time clock, this portable tester offers comprehensive analytical capabilities. This device outputs up to 2800V/20mA AC for comprehensive component evaluation.
Features:
1. Automatic voltage characteristic measurement and graphing for visual analysis;
2. Color LED touchscreen interface;
3. Dual-screen display: Simultaneously displays peak and RMS voltage values;
4. Six standard current points: 0.3mA, 0.5mA, 1.0mA, 3.0mA, 5.0mA, and 10mA, covering commonly used harmonic suppressor specifications;
5. Built-in printer for instant printing of test results;
6. Integrated real-time clock for recording test timestamps;
7. Lightweight and portable, ideal for field use;
8. Complies with Q/GDW415-2010 and DL/T596-1996 standards.
Parameter:
1. The instrument is suitable for testing the volt ampere characteristics of 6kV~35kV anti harmonic resistors;
2. Accuracy level: 3.0 level;
3. Usage environment: indoor and outdoor;
4. Environmental temperature: -20 ℃ to 50 ℃;
5. Environmental humidity: not exceeding 80% RH;
6. Output current AC: 0mA~20mA;
7. Output voltage AC: 0V~2800V;
8. Working voltage AC: 220V ± 10% 50Hz.
9. Comes with a built-in printer and clock, capable of outputting test results in a timely manner;
