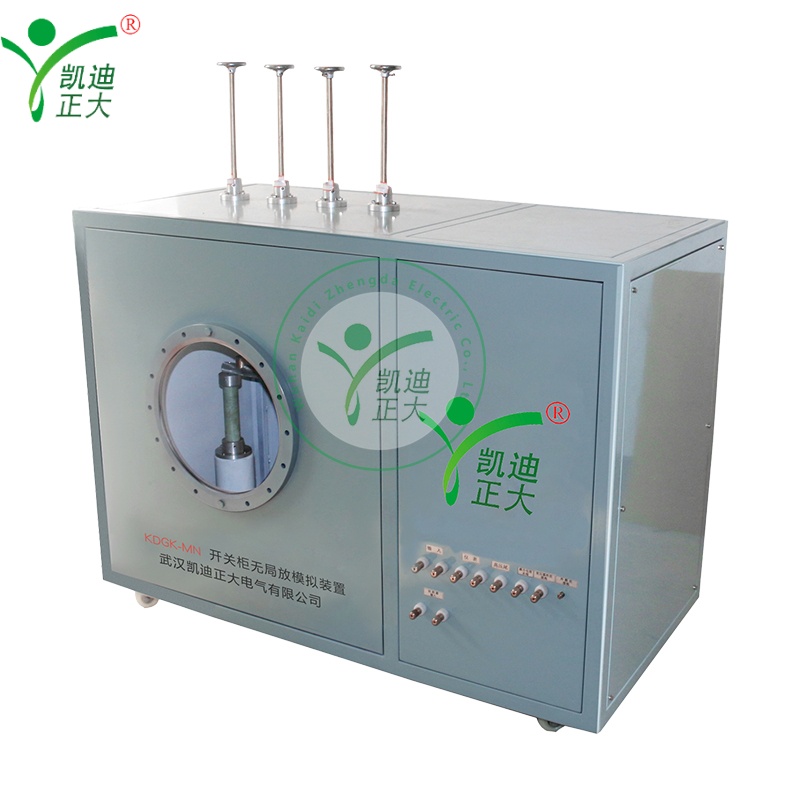

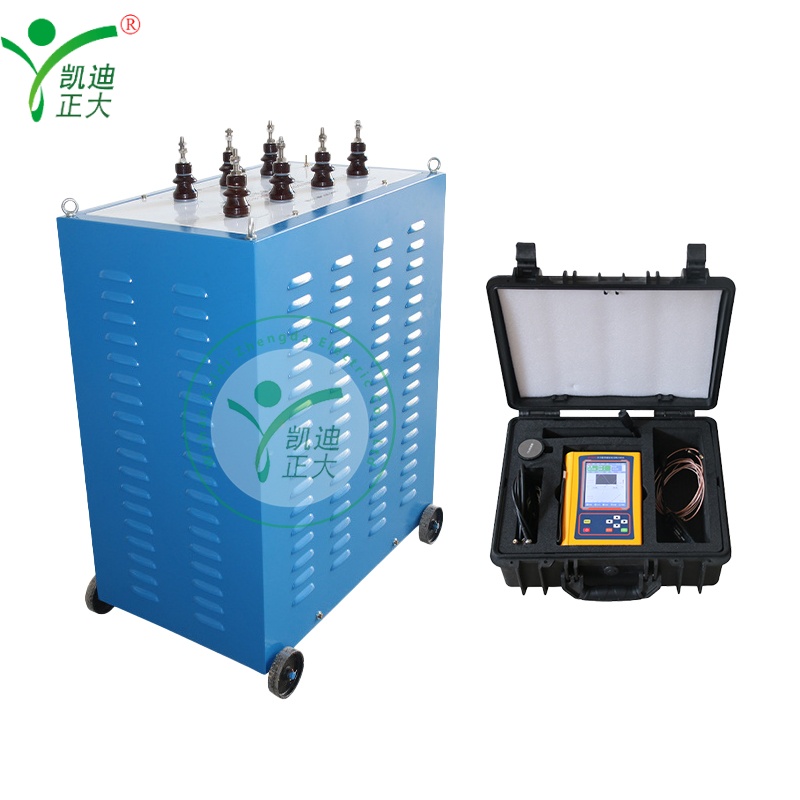

KDGK-MN Switchgear Partial Discharge Simulation Device (No PD Interference)
KDGK-MN Switchgear Partial Discharge Simulation Device (No PD Interference)

KDGK-MN Switchgear Partial Discharge Simulation Device (No PD Interference)

Applications:

Designed for simulating partial discharge (PD) faults of switchgear, providing a test platform for pulse current, UHF, ultrasonic and TEV detection technologies. Applied in labs, power utilities and equipment manufacturers for PD detector calibration and technical training.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDGK-MN is a compact switchgear PD simulation device with built-in high-voltage transformer and multiple discharge models. It features controllable PD parameters, infrared visualization and stable performance, enabling reliable PD detection technology verification.

Features:

  • Simulates 5 PD types (tip, floating potential, air gap, particle, surface discharge) and composite discharges
  • Controllable PD parameters: start voltage, extinction voltage and discharge intensity
  • Built-in infrared video probe for real-time observation of internal discharge status
  • Integrated PD coupling and calibration unit for metrological transmission and detector assessment
  • Built-in high-voltage transformer (isolated from external) ensures safe and reliable operation
  • Supports multiple detection technologies to meet diverse test and training needs
  • Compact design with external easy control of fault generation/elimination

Parameter:

  • High-Voltage Transformer
    • Input: AC 220V, 13.6A; Rated power: 3kVA
    • Output voltage: 0~30kV; High-voltage current: 0.1A
    • Instrument voltage: 100V; Measurement accuracy: ±1%
    • Partial discharge at rated voltage: ≤3pC
  • Coupling Capacitor
    • Rated voltage: 30kV; Nominal capacitance: 100pF
  • Discharge Models
    • Types: Tip, floating potential, particle, air gap (1 each); Supports composite discharge
  • Infrared Heating System
    • Power supply: AC 220V; Power: 2kW; Control mode: Manual
  • Switchgear & Physical Specifications
    • Dimensions: 1400×1000×700mm (approx.)
    • Structure: Integrated design with built-in high-voltage components
  • Safety & Accessories
    • Safety: High-voltage isolation; Grounding terminals for transformer and cabinet
    • Standard accessories: Isolation transformer, operation box, connection cables, user manual, inspection report, certificate of conformity
