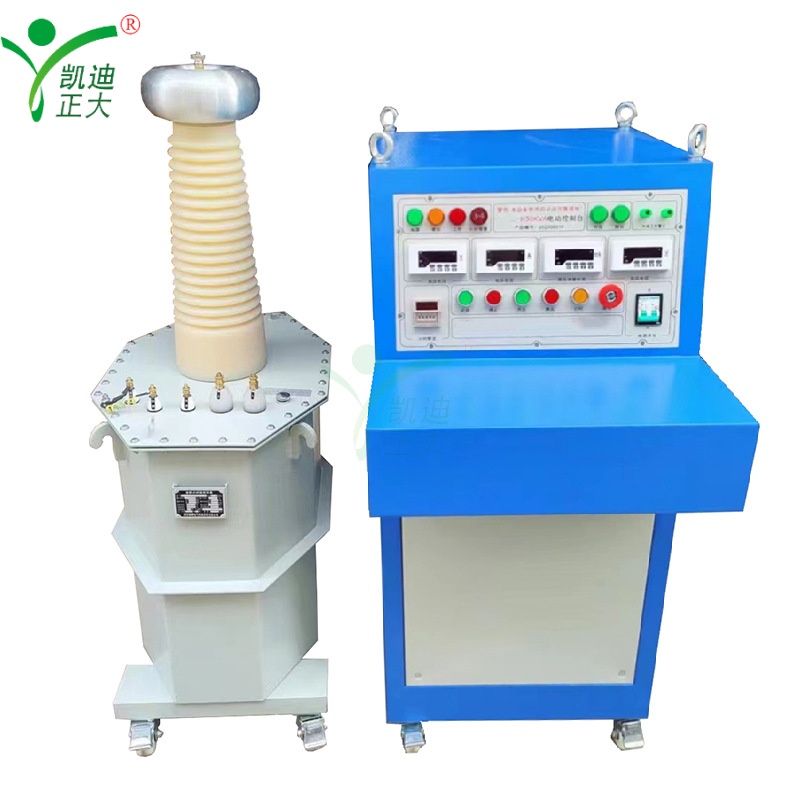

KD2675 Automatic Hipot Tester for Wire & Cable AC Withstand Voltage Test
KD2675 Automatic Hipot Tester for Wire & Cable AC Withstand Voltage Test

KD2675 Automatic Hipot Tester for Wire & Cable AC Withstand Voltage Test

Applications:

Complies with GB/T5023.1-2008/IEC60227-1:2007, used for AC withstand voltage tests of medium/low voltage wires, cables (XLPE, PVC, rubber) and electrical equipment cables. Applied in cable manufacturing plants, quality inspection labs for finished product delivery testing.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

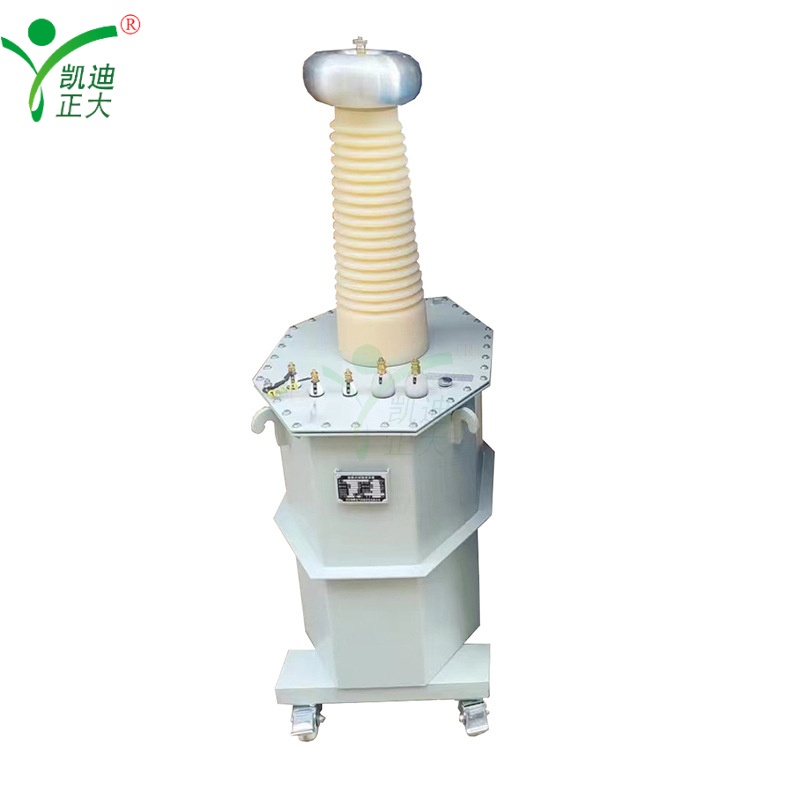

KD2675 is an automatic AC hipot tester with TDGz contact voltage regulator, featuring continuous voltage adjustment, triple protection and high accuracy. It’s compact, lightweight and energy-efficient, ideal for cable insulation withstand voltage detection.

Features:

  • Continuously adjustable AC output voltage (10V-100kV) to meet diverse test demands
  • Triple protection: zero-position, high-voltage leakage current and low-voltage current protection
  • Wide timing range with new time relay and accurate current relay for reliable operation
  • Intuitive reading via pointer/digital meters for voltage, current and timing status
  • Strong anti-interference, low waveform distortion and 200ms 15x overload current tolerance
  • Continuous working mode with power consumption less than 10% of rated value

Parameter:

  • Power Supply
    • Input voltage: 380V±10%, 50Hz; Input current: 75A
    • Rated power: 30kVA
  • Output Performance
    • AC output voltage: 10V-100kV (continuously adjustable)
    • Test current: Max 300mA
    • Rated capacity options: 1-5kVA (0-5kV), 10-20kVA (0-50kV), 30/50/100kVA (10-100kV), 200kVA (10-200kV)
  • Working Mode
    • Continuous operation
  • Protection & Control
    • Protection functions: Zero-position protection, overcurrent protection, time relay protection
    • Timing range: Factory set 60s (adjustable)
  • Display & Operation

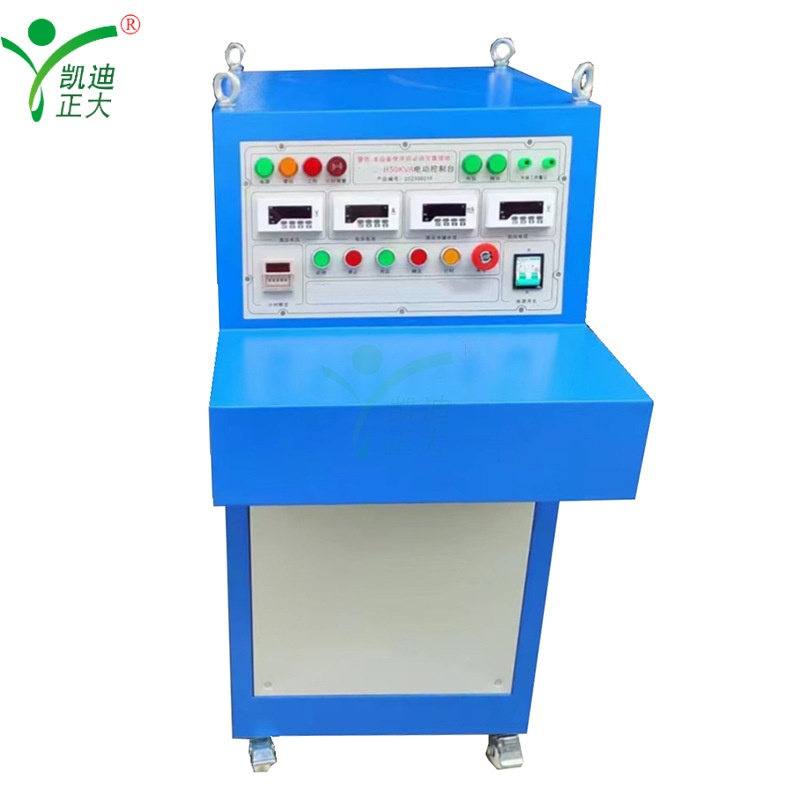

    • Meters: Pointer/digital meters for high/low voltage, high/low current indication
    • Control buttons: Start/stop, boost/buck, timing, emergency stop
  • Physical & Environmental
    • Shell: Cold-rolled steel plate, aluminum alloy brushed panel
    • Grounding requirement: Reliable grounding (ground rod depth ≥1m)
    • Accessories: High-voltage line, grounding wire, connecting wires, alarm light
