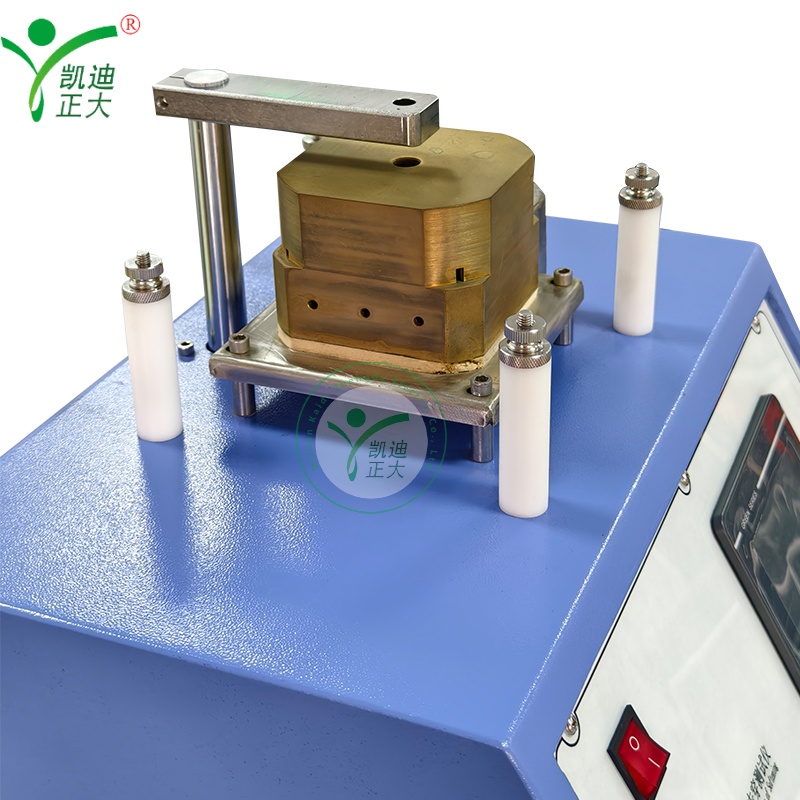

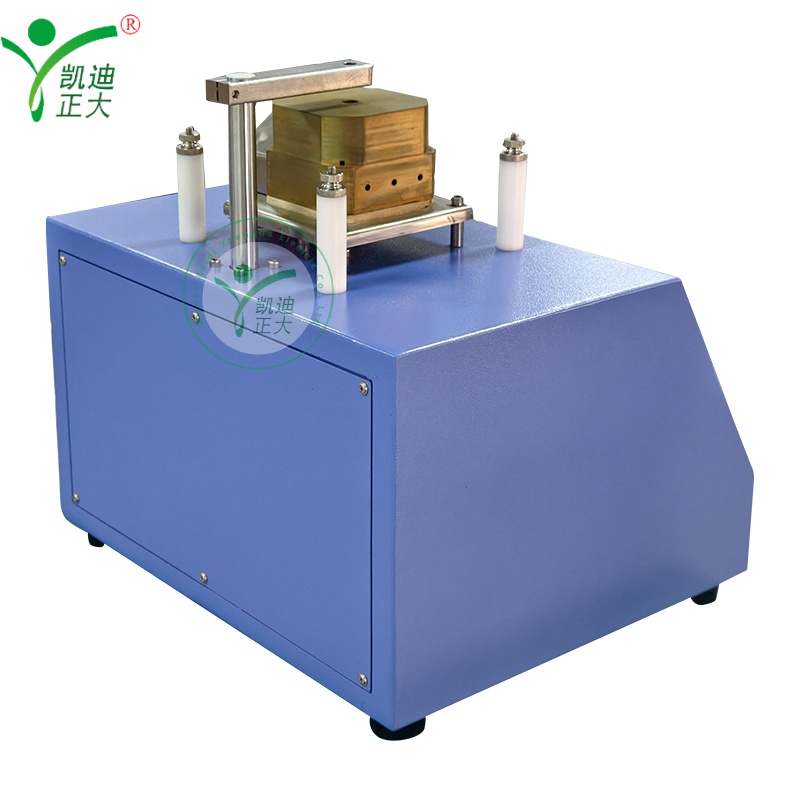

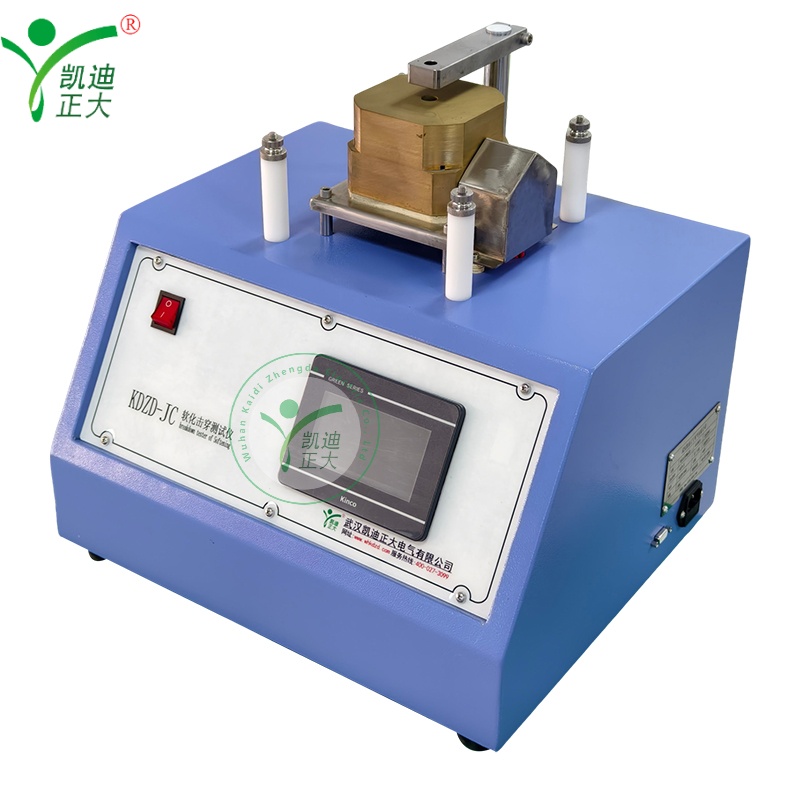

KDZD-JC Softening Breakdown Tester for Insulated Wires
KDZD-JC Softening Breakdown Tester for Insulated Wires

KDZD-JC Softening Breakdown Tester for Insulated Wires

Applications:

Complies with GB/T4074.6-2008/IEC 60851-6, used to test insulation performance of enameled/film-wrapped round wires (≤3mm) and flat wires (≤10mm×2mm) after thermal softening. Applied in wire manufacturing, electrical equipment production and quality inspection labs.

  • Response within
    24 hours

  • Free warranty
    12 month

  • On-line training
    Support

Profile:

KDZD-JC is an automatic softening breakdown tester with temperature control, voltage application and load handling. It completes preheating, testing and alarm automatically, featuring precise temperature control and intuitive operation for insulated wire insulation performance detection.

Features:

  • Automatic temperature measurement, control and display with temperature difference <2℃
  • Supports constant temperature and two heating methods with matching test voltages
  • Adjustable preheating and test time (1–999s) to meet different test requirements
  • Automatic load application/unloading, voltage supply/cutoff and audible alarm for breakdown
  • Clear wiring and clamping mechanism with connection indicator for easy operation
  • Stable heating system with 900W power and max test temperature up to 450℃

Parameter:

  • Applicable Wire Specifications
    • Round wires: ≤3.000mm diameter; Flat wires: ≤10mm×2mm
  • Test Voltage & Current
    • Constant temperature/Heating method 1: AC100V±10V, breakdown current 5±0.5mA
    • Heating method 2: AC155V±10V, breakdown current 20±1mA
    • Short-circuit current between samples: ＜50mA
  • Temperature Control
    • Max test temperature: ≤450℃; Temperature difference: ＜2℃ (display vs sample cross-point)
  • Time Settings
    • Preheating time: 1–999s adjustable; Test time: 1–999s adjustable
  • Heating System
    • Heating mold size: 100×100×70mm; Mold slot angle: 90°
    • Heating power: 900W
  • Power Supply
    • Input: AC220V±10%, 50Hz
  • Physical Specifications
    • Dimensions (L×W×H): 450×380×500mm; Weight: 30kg
  • Accessories
    • Standard weights: 1N, 0.25N, 1.20N, 3.5N, 8N, 9N, 18N (1 each)
    • Other accessories: Power cord, calibration certificate, user manual
