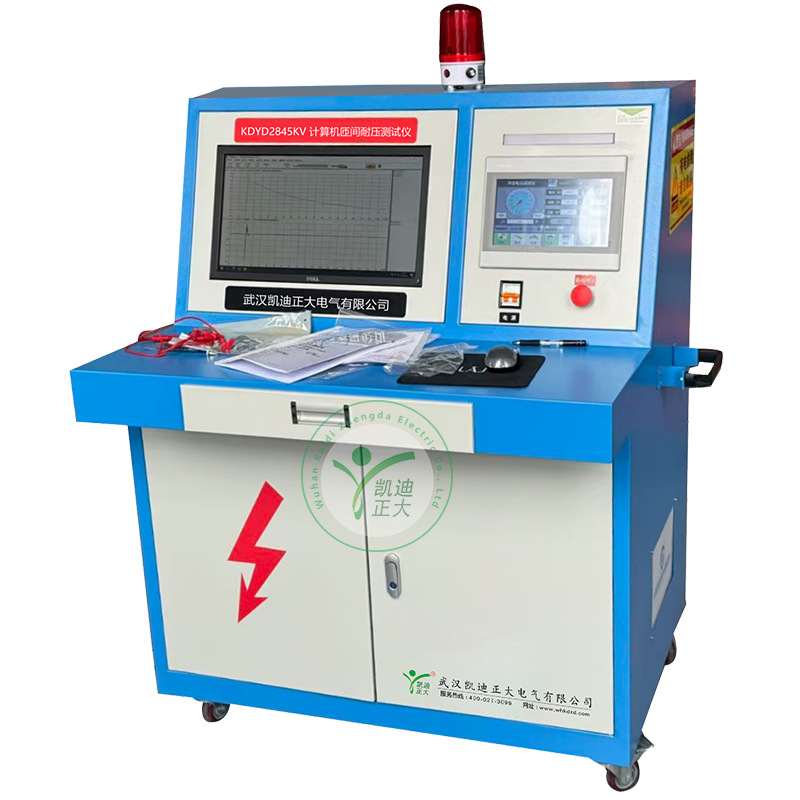

KDYD-2845kV Intelligent Interturn Voltage Withstand Tester
The KDYD-2845kV intelligent turn to turn withstand voltage tester is a high-performance testing equipment designed specifically for large and medium-sized motors, transformers, and electrical coils. It is suitable for evaluating the turn to turn insulation quality of products with a rated voltage of 15kV and below.
This instrument uses the high-frequency and high-voltage shock wave comparison method to quickly and non destructively detect typical faults such as inter turn short circuits, corona discharges, and impedance imbalances in windings by simulating an equivalent overvoltage environment.
Equipped with an intelligent industrial control system that supports automatic waveform acquisition, analysis, storage, and report generation, achieving fully digital management of the testing process. The dual safety protection mechanism (start button+foot switch, safety barrier interlock, grounding protection) ensures safe and reliable operation.
High energy output (peak 101J), high-precision sampling, and mobile cabinet design make it widely used in fields such as motor manufacturing, transformer production, electrical maintenance, and quality control.
Features:
KDYD-2845kV Intelligent Interturn Voltage Withstand Tester
The KDYD-2845kV intelligent turn to turn withstand voltage tester is a high-performance testing equipment designed specifically for large and medium-sized motors, transformers, and electrical coils. It is suitable for evaluating the turn to turn insulation quality of products with a rated voltage of 15kV and below.
This instrument uses the high-frequency and high-voltage shock wave comparison method to quickly and non destructively detect typical faults such as inter turn short circuits, corona discharges, and impedance imbalances in windings by simulating an equivalent overvoltage environment.
Equipped with an intelligent industrial control system that supports automatic waveform acquisition, analysis, storage, and report generation, achieving fully digital management of the testing process. The dual safety protection mechanism (start button+foot switch, safety barrier interlock, grounding protection) ensures safe and reliable operation.
High energy output (peak 101J), high-precision sampling, and mobile cabinet design make it widely used in fields such as motor manufacturing, transformer production, electrical maintenance, and quality control.
Parameter:
Product Technical Specifications:
1. Input voltage: 220V ± 5%; Frequency 50Hz/60Hz ± 2%;
2. Test range: continuously adjustable within the range of 0-45kVP; ±5% ；
3. Trigger frequency: 1 time/second
4. Wavefront time: 0.1-0.5 µ s (standard specification);
5. The tolerance is: (+0.3)/(-0.1) µ s;
6. Peak output voltage: 0-45kVP ± 5%;
7. Pulse capacitance: 0.01 μ F -0.1 μ F;
8. Maximum output energy: 101J;
9. Power consumption: 1000VA;
10. Insulation resistance: The insulation resistance of the power input terminal to the rack is ≥ 20M Ω;
11. Dielectric strength: The power input terminal can withstand 1500V/50Hz for 1 minute without flying fox or breakdown during the withstand voltage test on the rack
Phenomenon;
12. Environmental temperature: 0-40 degrees;
13. Relative humidity: ≤ 80% at 40 degrees Celsius;
14. Waveform tolerance: ± 3%
15. Dimensions: 900 × 550 × 1300; (Equipped with universal wheels at the bottom, easy to move)
16. Weight: 180kg;
17. Style: Cabinet style;
18. Scope of application: AC/DC motor coils with rated voltage of 15000V and below, as well as inter turn insulation withstand voltage tests for the entire machine.
