Profile:

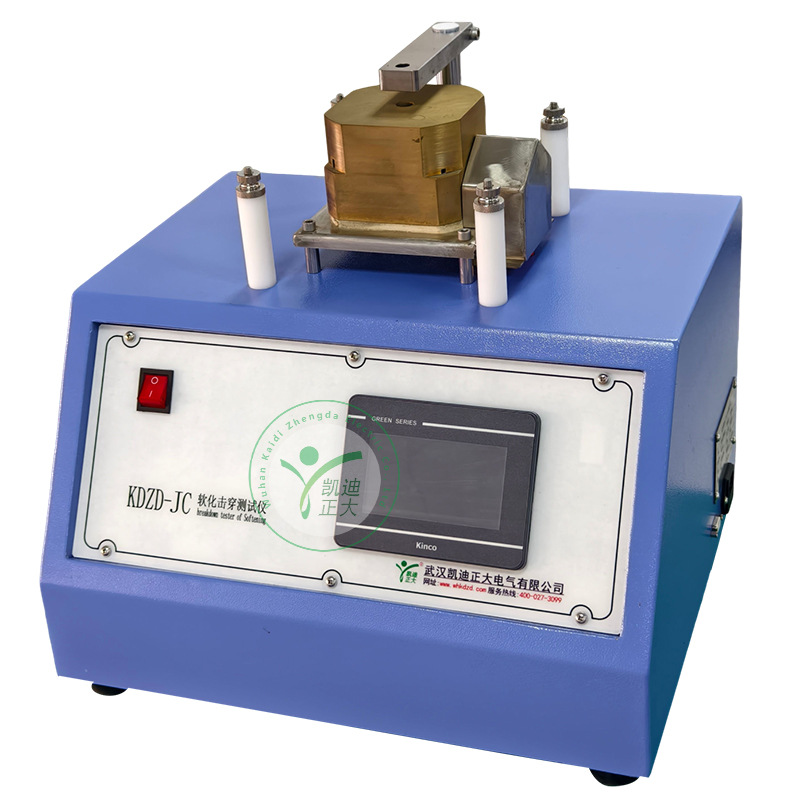

The KDZD-JC Softening Breakdown Tester is a high-precision automated instrument designed to evaluate the insulation performance of enameled round wires, film-wrapped round wires, and flat wires (with conductor diameters ranging from 0.020mm to 3.000mm or flat dimensions up to 10mm×2mm) after thermal softening, adhering to international standards such as GB/T4074.6-2008/IEC 60851-6 and JB/T4279.8-2008. It features automatic temperature measurement, control, and adjustment, along with programmable settings for preheating duration, target temperature, and test time, enabling seamless execution of heating, load application, and voltage testing. The device supports three testing modes: fixed-temperature testing (heating to a specified temperature before evaluation), rising-temperature method 1 (100V±10V with a breakdown threshold of 5±0.5mA), and rising-temperature method 2 (155V±10V with a breakdown threshold of 20±1mA), ensuring accurate detection of insulation failure under thermal stress. Equipped with a 900W heating system capable of reaching up to 450°C, a compact 450×380×500mm chassis, and a 30kg weight, it integrates advanced current detection, time control, and motor-driven load application to deliver reliable results. The tester provides real-time feedback via alarms and on-screen notifications (e.g., "Sample Breakdown" or "Test Completed") and includes calibration protocols for voltage, short-circuit current, and sensitivity to maintain measurement accuracy. Its applications span quality assurance in wire/cable manufacturing, material R&D validation, and compliance testing, making it an essential tool for laboratories, production facilities, and research institutions requiring precise, repeatable thermal insulation performance analysis under standardized conditions.
Features:
The KDZD-JC Softening Breakdown Tester is a high-performance instrument designed for precise evaluation of thermal insulation performance in conductive materials, featuring automated temperature control, programmable test parameters, and real-time monitoring capabilities to ensure accurate and repeatable results. It integrates advanced technologies such as automatic heating, load application, and voltage regulation, supporting multiple testing modes including fixed-temperature testing (heating to a predefined temperature before evaluation) and rising-temperature methods (100V±10V or 155V±10V with breakdown thresholds of 5±0.5mA or 20±1mA respectively), making it adaptable to diverse material and standard requirements. The device complies with key international and national standards (GB/T4074.6-2008/IEC 60851-6 and JB/T4279.8-2008) and is engineered with a compact 450×380×500mm chassis, a 900W heating system capable of reaching up to 450°C, and a 30kg robust design to ensure stability and durability during operation. Its user-friendly interface allows seamless setup of preheating duration, target temperature, and test time, while built-in safety features such as automatic overload protection, real-time alarms for breakdown events, and calibration protocols for voltage, current, and sensitivity guarantee reliable and compliant testing. Additionally, the tester’s modular design, including interchangeable clamps for wires up to 3mm in diameter or 10mm×2mm flat conductors, ensures flexibility across applications in quality control, material R&D, and standardized compliance testing for wire and cable manufacturing industries.
Parameter:
Specification

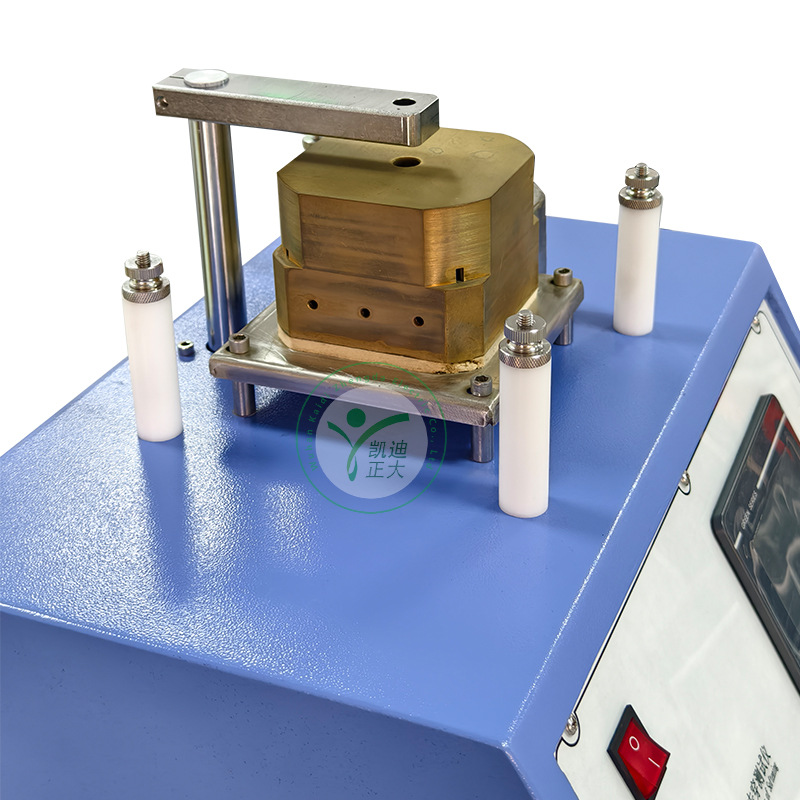

Heating mold size: 100 × 100 × 70mm
Heating mold two wire groove intersection angle: 90 °
Applicable circular wire specifications: diameter less than or equal to 3mm
Applicable flat wire specifications: less than or equal to 10mm x 2mm
Constant temperature method&rising temperature method - Test voltage: AC100V ± 10V
Temperature rise method 2 experimental voltage: AC155V ± 10V
Constant temperature method&rising temperature method - one sample breakdown action current: 5 ± 0.5mA
Temperature rise method, second sample breakdown action current: 20mA ± 1mA
Short circuit current between samples: ＜ 50mA
Display temperature and temperature difference at the intersection of the sample: ＜ 2 ℃
Sample preheating time and test time: 1 second to 999 seconds can be set arbitrarily
Maximum test temperature: ≤ 450 ℃
Input power supply: AC220V ± 10% 50Hz
Heating power: 900W
Dimensions: L × W × H 450 × 380 × 500mm
Weight: 30kg
