KDZGS-SZ 60kV/200mA Water-Cooled Generator DC Withstand Voltage Test Device (Low-Voltage Shielding M

KDZGS-SZ 60kV/200mA Water-Cooled Generator DC Withstand Voltage Test Device (Low-Voltage Shielding M

Applications:

Designed for DC withstand voltage and leakage current tests of water-cooled generator stator windings (with/without water flow), suitable for power plants and maintenance units. It solves water blowing time-consuming and water quality interference issues, ensuring efficient and accurate insulation testing.

Response within
24 hours
Free warranty
12 month
On-line training
Support

Profile
Features
Parameter

Profile:

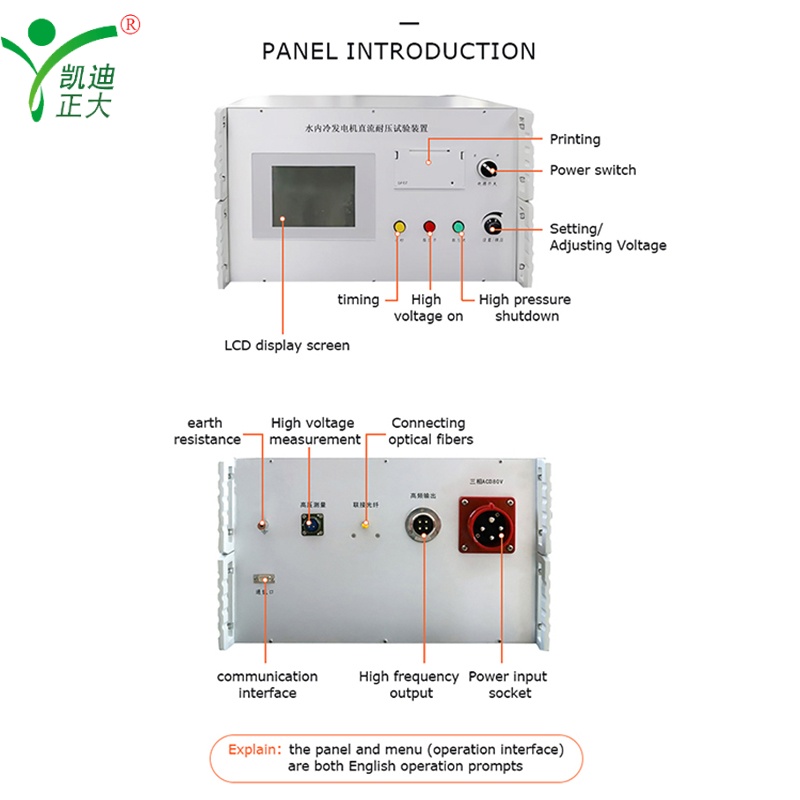

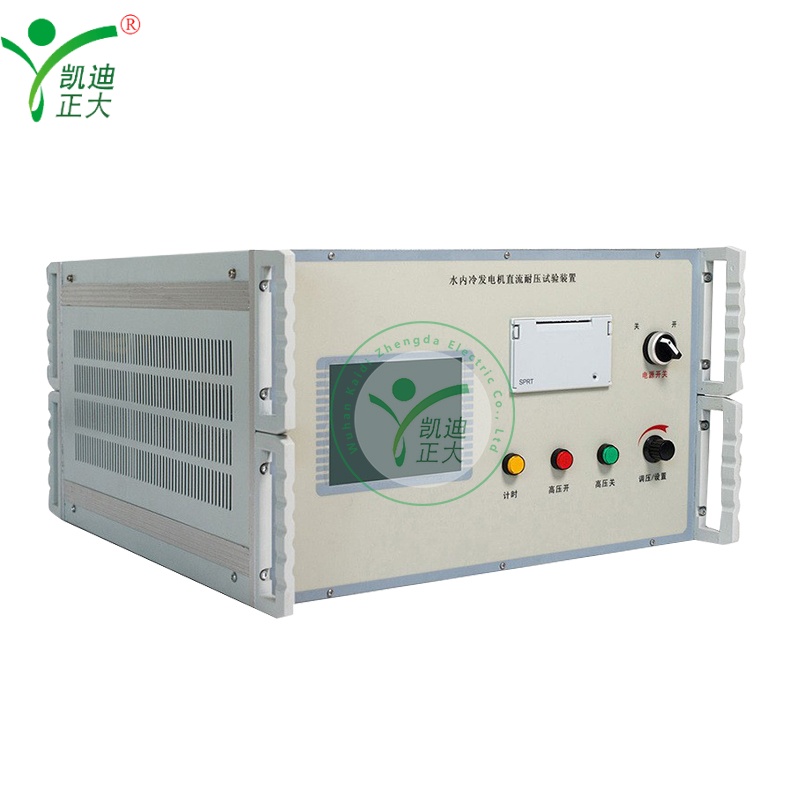

This device adopts the low-voltage shielding principle, integrating control box and voltage doubling cylinder. It features LCD display, automatic polarization compensation and overvoltage/overcurrent protection, enabling convenient and reliable on-site testing without complex wiring.

Features:

Low-voltage shielding technology separates water pipe current from insulation leakage current for accurate measurement
Automatic polarization compensation eliminates polarization potential impact, ensuring stable leakage current reading
LCD display with intuitive parameter setting, test status and result presentation
One-key timing (1-minute) function meets test procedure requirements
Comprehensive protections: overvoltage/overcurrent protection + external zinc oxide overvoltage protector
Integrated design simplifies wiring, reducing equipment weight and operational intensity
Supports both water-passing and water-filled test modes to adapt to different water quality conditions

Parameter:

Core Output Performance (Series Range)
- Output voltage: 60kV~100kV DC; Output current: 80mA~320mA; Output power: 4.8kW~28.8kW
- Voltage measurement error: ≤1.0% (scale ±1 digit); Total current measurement error: ≤1.0% (scale ±1 digit)
- Leakage current measurement error: ±2.0% (full scale)
Stability & Ripple
- Voltage stability: ≤1.0%; Load regulation rate: ≤1.0%; Ripple coefficient: ≤3.0%
- Overvoltage setting error: ≤1.0% (automatically 1.1×test voltage if lower)
Power Supply
- Input: Three-phase four-wire AC 380V±10%, 50Hz
Working Conditions
- Working mode: Intermittent (max 5 minutes continuous operation at rated load)
- Temperature: -10℃~40℃; Relative humidity: ≤90% (25℃, no condensation); Altitude: ≤2000m
Physical Specifications
- Control box weight: 17kg~40kg; Voltage doubling cylinder weight: 18kg~(14+37)kg (by model)
- Voltage doubling cylinder height: 630mm~1000mm
Function & Protection
- Key functions: Electronic voltage regulation, LCD display, printer output, test record query
- Protection: Overvoltage, overcurrent, zero-start protection; Leakage current overcurrent protection (fixed 3mA)
- Special functions: Automatic polarization compensation, 1-minute timing prompt
Accessories
- Standard accessories: Voltage doubling cylinders, intermediate frequency transformers, zinc oxide overvoltage protector, current-limiting resistors, power cables, high-voltage leads, discharge rod, dedicated grounding wire, sampling wires for water collecting pipe
