Innovative Solutions for Efficient Partial Discharge and Voltage Withstand Testing in Power Infrastructure
1. Strategic Context: Powering Grid Reliability Amid Evolving Energy Demands
As global electricity demand surges, ensuring grid reliability has become a critical priority. Recent developments in China’s power sector underscore this trend: the groundbreaking cross-grid electricity spot trading between State Grid and Southern Grid in October 2025 demonstrates accelerating integration of power networks, placing new emphasis on transmission infrastructure quality . This historic transaction, transferring 1.8 GW of clean energy across grid boundaries, highlights the growing importance of reliable cable systems in enabling efficient electricity distribution .
Within this context, Wuhan KaidiZhengda Electric Co., Ltd.—a recognized high-tech enterprise and supplier to both State Grid and Southern Grid—has launched its innovative oil cup device series to address fundamental challenges in cable manufacturing quality control. These products arrive as grid operators worldwide face increasing pressure to minimize failures in critical transmission infrastructure.
2. Product Portfolio: Advanced Testing Solutions for Cable Manufacturing
The company’s oil cup series comprises two complementary product lines designed to streamline cable testing processes:
KDCT Cable Test Oil Cup Terminals

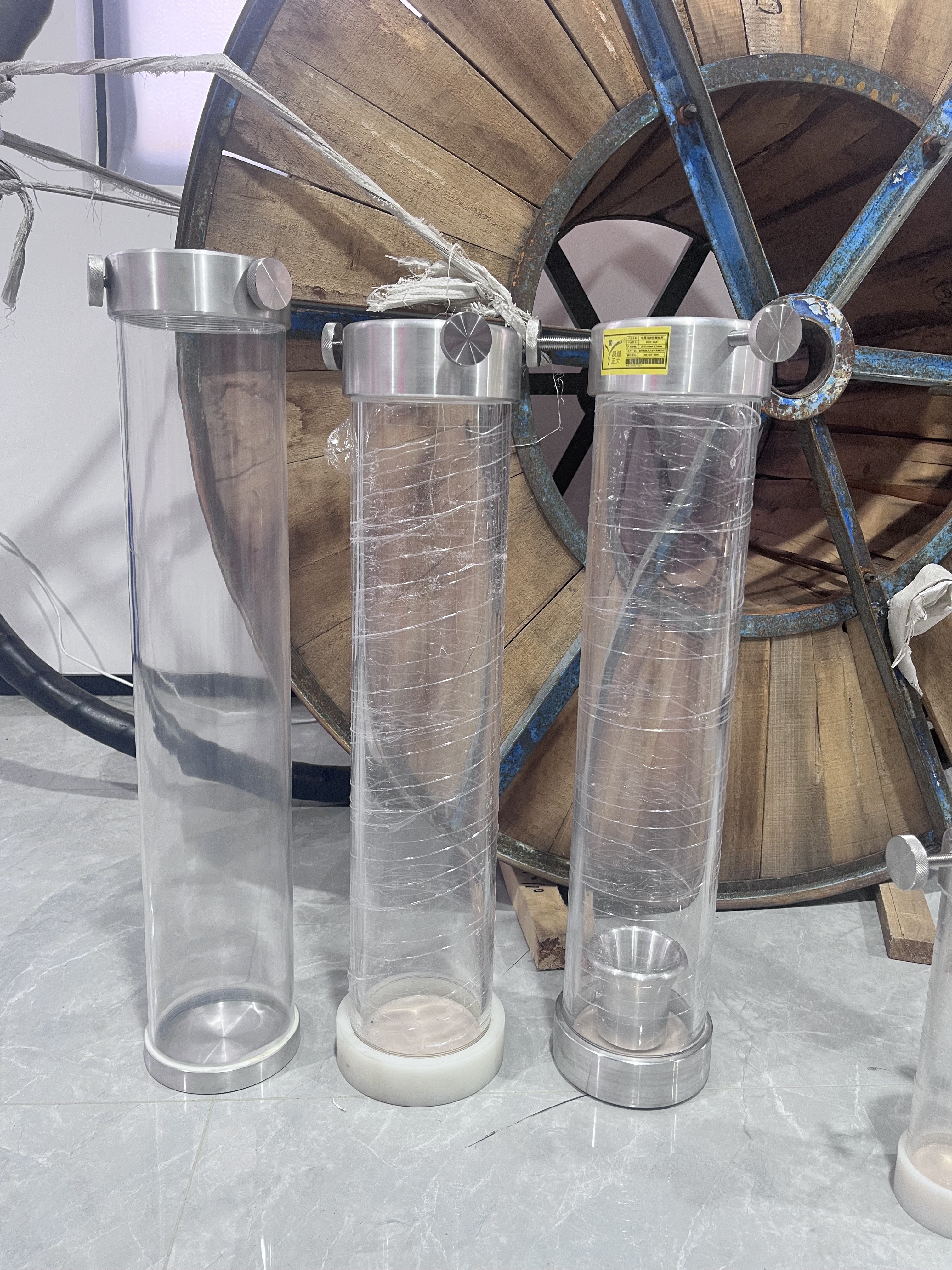

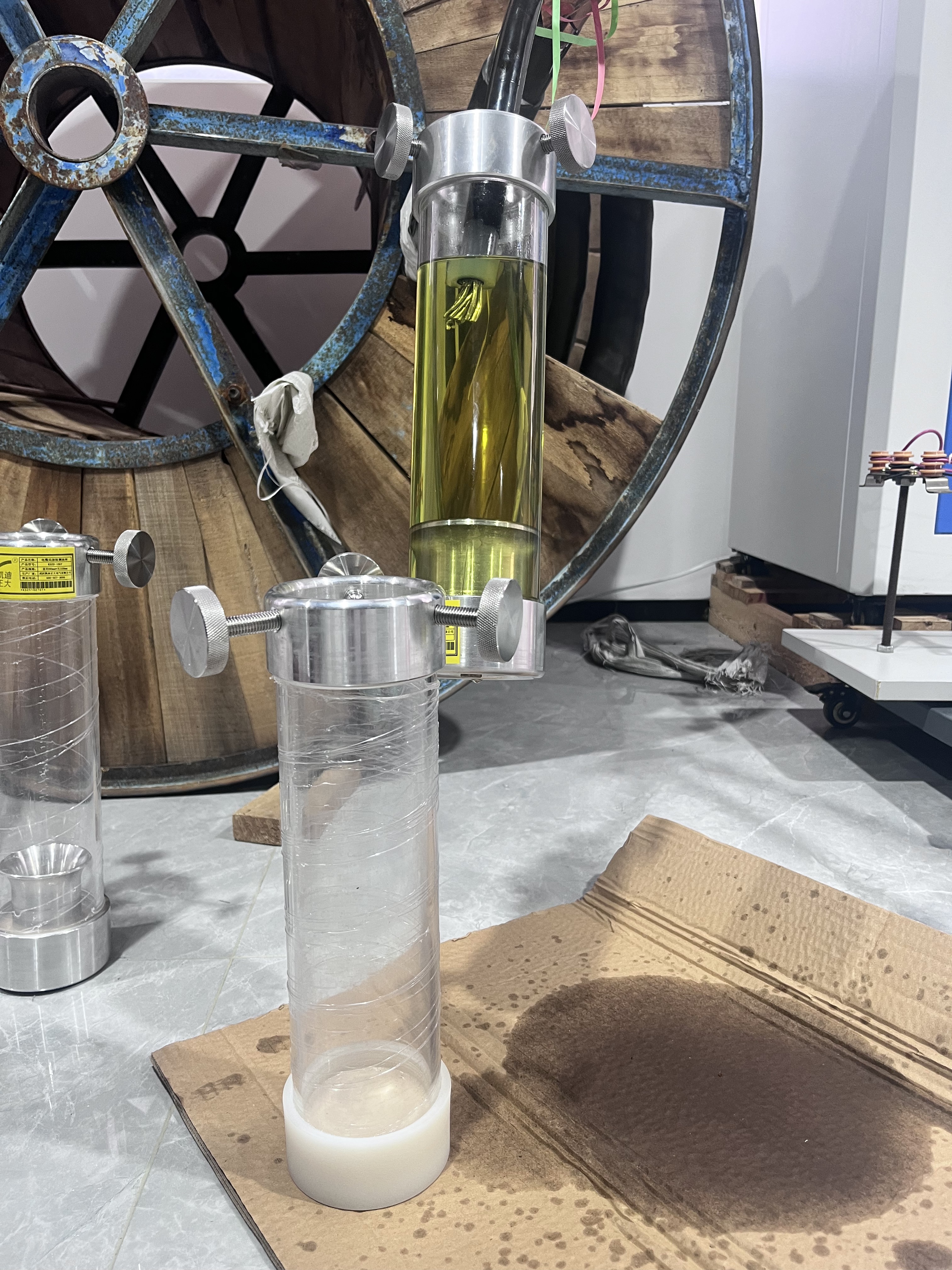

These suspended experimental terminals represent a significant advancement over traditional grounded oil cups. Engineered specifically for 10kV-35kV cross-linked polyethylene (XLPE) cables during routine partial discharge (PD) and voltage tests, their design incorporates three key elements: an optically transparent organic glass tube for visual monitoring, a precision-machined cable fixation flange, and an optimized high-voltage shielding cage .
The suspended architecture provides tangible operational benefits. Unlike conventional designs requiring bulky supports, these terminals can be moved directly to cable production lines, reducing preparation time by approximately 50% according to company data . This mobility enables cable manufacturers to efficiently share a single partial discharge detection system across multiple production lines, significantly reducing capital equipment costs while improving utilization rates.
Performance metrics validate the design’s effectiveness: the KDCT-35kV model demonstrates minimal partial discharge of <2pC at 25kV while maintaining reliable insulation integrity up to 100kV . For higher-voltage applications, the KDCT-100kV variant maintains the same <2pC partial discharge threshold at 80kV, accommodating cables up to 35kV rating with a 100kV withstand voltage capability .
KDJJC Series Insulation Oil Dielectric Strength Testers
Complementing the terminals, the KDJJC series introduces automation to insulation oil quality verification. These testers—including single-cup (KDJJC-80) and three-cup (KDJJC-3A) configurations—feature programmable voltage rise rates (0.5–5.0 kV/s adjustable), 80 kV output capacity, and measurement accuracy of ≤2% . This precision ensures consistent compliance with GB, DL, and IEC standards for insulation oil dielectric strength assessment.
3. Technical Differentiation: Engineering Excellence for Real-World Applications
Several innovative features distinguish KaidiZhengda’s oil cups from conventional alternatives:
Efficiency-Optimized Architecture
The compact, suspended design directly addresses spatial constraints in cable manufacturing facilities. With dimensions of Φ90mm × 350mm for the KDCT-35kV model and Φ160mm × 1050mm for the KDCT-100kV version, these terminals occupy minimal space while providing maximum functionality . The design enables testing personnel to perform cable termination procedures directly at production lines rather than transporting cables to dedicated test stations.
Precision Engineering for Accurate Diagnostics
Advanced electrical design ensures exceptional measurement accuracy. The products achieve ultra-low partial discharge levels (<2pC) even under demanding test conditions, providing reliable detection of insulation defects that might escape conventional equipment . This sensitivity enables cable manufacturers to identify potential field failures before products leave the factory.
Adaptability to Diverse Requirements
The product series supports customized operational parameters including voltage rise rates, test cycles, and physical dimensions to accommodate specific manufacturing environments . This flexibility extends to standards compliance, with configurations available that meet GB507, DL/T429, and IEC156 protocols, ensuring global applicability.
4. Industry Impact: Transforming Cable Manufacturing Quality Assurance
KaidiZhengda’s oil cup series addresses critical pain points in cable production:
Accelerated Production Workflows
By reducing preparatory time by approximately half, the technology significantly shortens cable testing cycles . This efficiency gain enables manufacturers to maintain rigorous quality control standards without creating production bottlenecks, particularly valuable in high-volume manufacturing environments serving urgent infrastructure projects.
Enhanced Detection Capabilities
The superior sensitivity (<2pC) allows identification of subtle insulation imperfections that conventional equipment might miss . This capability is particularly valuable for utilities implementing condition-based maintenance strategies, where accurate knowledge of cable health is essential for predicting and preventing failures.
Resource Optimization
The ability to share a single partial discharge detection system across multiple production lines represents substantial cost savings for cable manufacturers. This approach reduces capital investment in test equipment while maintaining comprehensive quality assurance capabilities across all production lines.
5. Corporate Profile: Established Expertise in Power Testing Solutions
Wuhan KaidiZhengda Electric, founded in 2013, has established itself as a specialized provider of power testing equipment serving major grid operators . The company maintains ISO9001 certification and collaborates with power industry experts to develop intelligent testing solutions. Their product development philosophy emphasizes practical innovation based on "extensive field experience in partial discharge testing" .
The company’s product range extends beyond oil cups to include complete testing systems for various power applications, reflecting their comprehensive understanding of utility testing requirements . This broad expertise informs the design of their oil cup series, ensuring compatibility with existing test protocols and equipment.
6. Market Positioning: Meeting Global Cable Testing Challenges
KaidiZhengda’s oil cup series enters a global market where reliable power transmission is increasingly critical. The technology’s design aligns with several industry trends:
Grid Modernization Initiatives: Worldwide investments in grid upgrades create demand for more reliable cable testing methodologies
Quality Standardization: Increasing adoption of international standards (IEC, GB, DL) necessitates testing equipment with verified compliance capabilities
Efficiency Pressures: Manufacturing competitiveness demands faster, more accurate testing protocols that minimize production delays
The products’ ability to facilitate precise partial discharge measurement positions them as valuable tools for cable manufacturers supplying critical infrastructure projects, particularly as grid interconnections expand following the model demonstrated by the State Grid-Southern Grid cooperation .
7. Availability and Technical Support
Wuhan KaidiZhengda Electric makes the oil cup series available worldwide through its direct sales channels and distribution partners. Detailed technical specifications, application notes, and ordering information are accessible through the company’s official international website at https://en.china-kdzd.com/. The company provides comprehensive technical support, including customization services for specific application requirements and integration with existing test systems.
